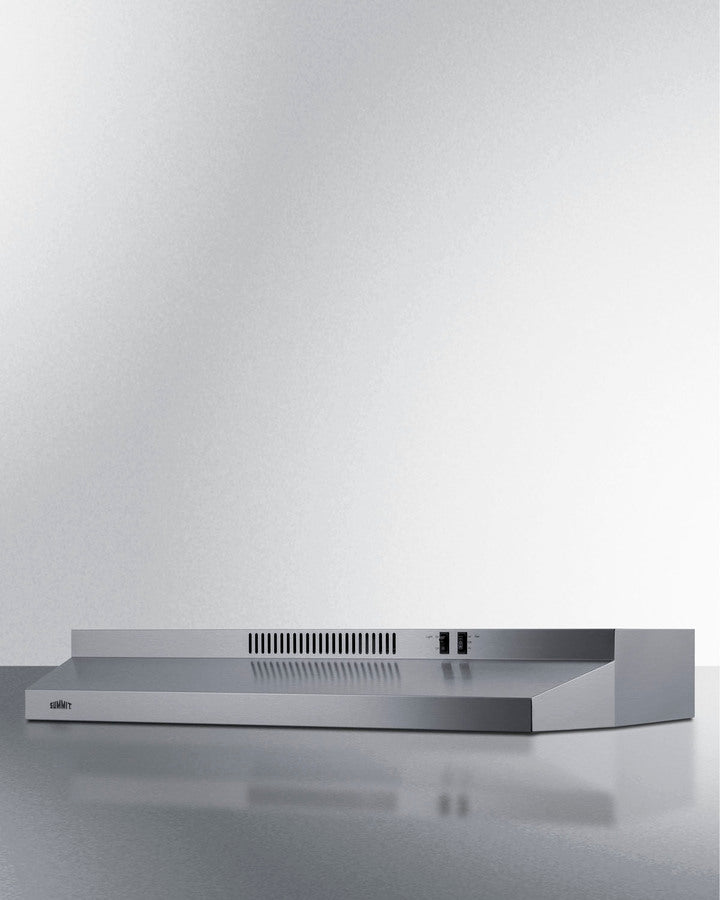

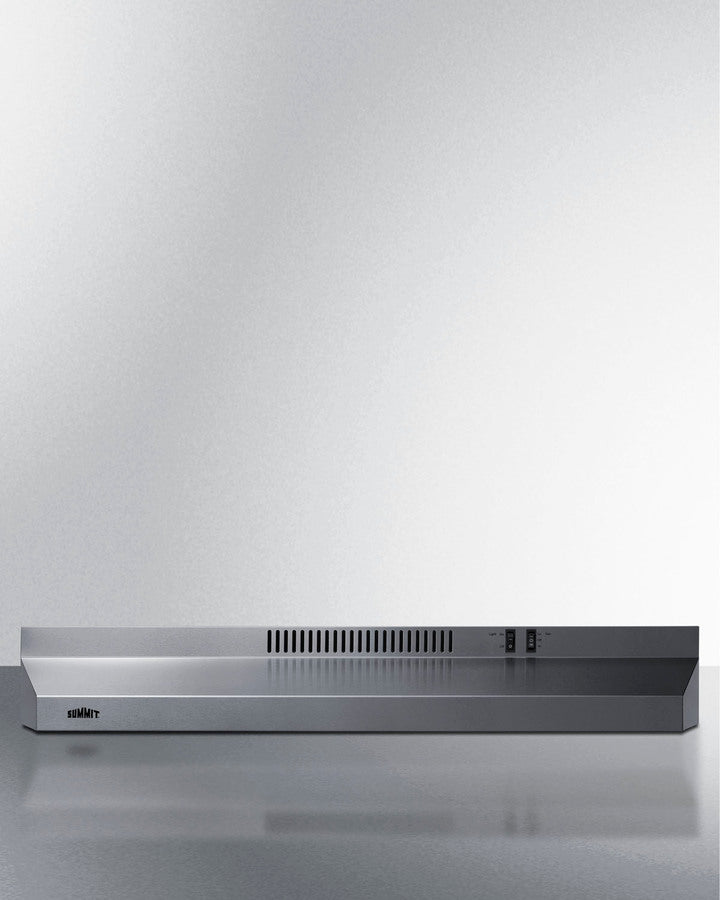

Summit H36RSSADA 36″ Wide Under-Cabinet Convertible Range Hood – Stainless Steel (ADA Compliant)

SKU: SA-H36RSSADA
Regular price $326.10
Premium Stainless Steel Finish & Durable Construction — Cabinet in stainless steel with horizontal-grain finish for modern appeal and easier cleaning, suitable for residential or accessible-use kitchens.
Two-Speed Fan with Included Filters & Lighting — Features high/low fan settings, a light with included bulb, removable metal mesh grease filter, and a charcoal filter for recirculating mode.
Low-Profile, Full-Width Build for Standard 36″ Surfaces — Measures 5.13″ H × 35.88″ W × 18.63″ D (13 cm × 91 cm × 47 cm), making it ideal for installations over 36″ cooktops or ranges.
5.13" H x 35.88" W x 18.63" D
(13cm H x 91cm W x 47cm D)
5 years - Compressor Warranty
1 year - Parts & Labor Warranty
Free Freight Shipping - Includes lift-gate service (curbside delivery). White Glove service available by quote: 800-626-0854 or sales@hegemonsupply.com

Features

  • SKU SA-H36RSSADA

36" Wide ADA Compliant Range Hood:
Convertible hood designed for ducted or ductless installation in compliant with ADA guidelines

ADA compliant design:

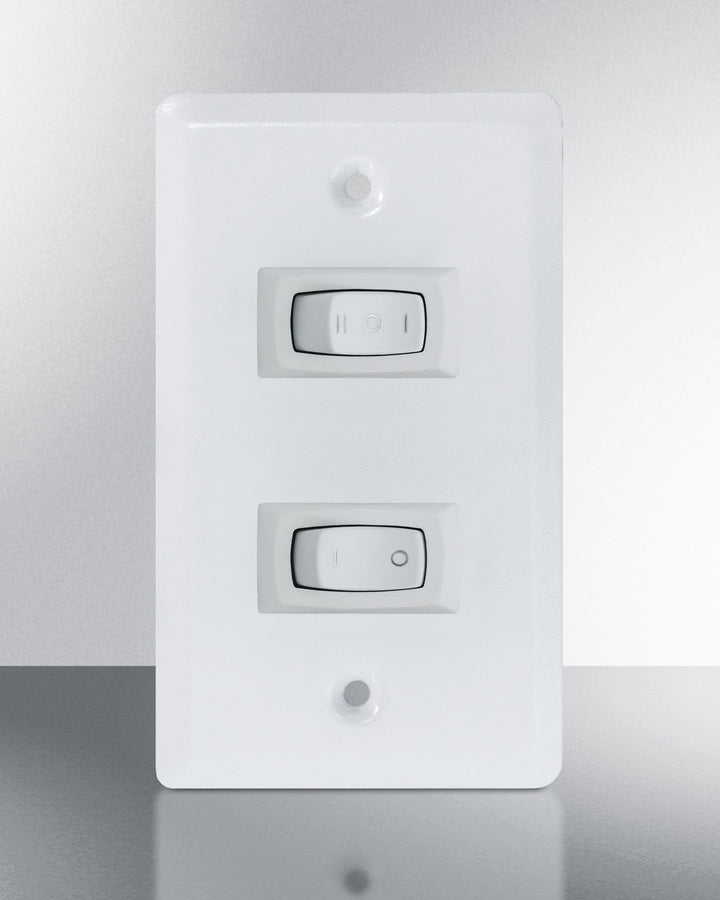

Hood is wired to run off a wall switch for improved accessibility, with a remote terminal block included

Under cabinet range hood:
Low profile design offers a classic way to finish your kitchen

36 inch width:
Sized for use over 36 inch cooking surfaces (additional sizes available)

Convertible design:
Can be used for ducted venting to the outside or recirculating ventilation where no external venting is possible

Easy 1-step conversion:
Ships pre-set for recirculating mode but can be converted for ducted use in less than a minute

Versatile top or rear exhaust:
Ships for standard 3 1/4" x 10" vertical or horizontal exterior venting and convertible to a 6" or 7" round vertical venting with a transition (not included)

Stainless steel finish:
Durable construction in an attractive style with a horizontal grain

Two-speed fan:
High and low setting to allow proper ventilation of your kitchen as needed

Light & bulb included:
Includes an incandescent bulb to help illuminate your cooking surface

Removable metal grease filter:
Easy installation and detaching allows you to properly clean the filter for optimum efficiency

Charcoal filter included:
Helps absorb grease and odors when using the hood in recirculating mode

Rocker switch controls:
Front-located on/off and high/low switches make it easy to manage the light and fan

Professional installation:
Designed to be hard-wired by a licensed professional

Summit's selection of specialty appliances includes accessible range hoods specially designed to be installed in compliance with Section 308 and 309 of the ADA Guidelines.

Model H36RSSADA is a 36" wide range hood ideal for apartments, senior living kitchens, hotel suites, and other smaller spaces. It features an attractive stainless steel finish with a horizontal grain. We include a remote terminal block and wall switch cover to allow the controls to be installed separately from the hood and at a lower, accessible height in accordance with ADA guidelines. The 2-speed fan is easily managed by a rocker switch with a high and low ventilation setting.

This hood is convertible for horizontal or vertical ducted ventilation or ductless/recirculating ventilation where no exhaust connection to the outside is available. It ships ready for standard 3 1/4" x 10" rectangular ducting, but it can be used with a round 6" or 7" duct with the addition of a transition (not included). We include a metal mesh filter to catch grease and a charcoal filter to absorb smoke and odors when using in recirculating applications. This unit does not include a power cord and is designed to be hard-wired by a licensed professional.

Additional convertible range hoods are available in 18", 20", 24", and 30", with more styles and choices coming soon. Browse the full Summit product line to explore your options.

 Overview

Refrigerator-Freezer

Nominal Height 6.0" (15 cm) Venting Convertible
Height of Cabinet 5.13" (13 cm) Controls Dial
Nominal Width 36.0" (91 cm) Light Yes
Width 35.88" (91 cm) Number of Lights 1
Nominal Depth 19.0" (48 cm) Light Type Incandescent
Depth 18.63" (47 cm) Number of Fan Speeds 2
Cabinet Stainless Steel Duct Shape 3"1/4" x 10" rectangular or 6/7" round with transition
US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Voltage/Frequency 115 V AC/60 Hz

Weight 13.0 lbs. (6 kg)

Parts & Labor Warranty 1 Year

UPC 761101087405

BROCHURE

ASSEMBLY DRAWING

SUPPORT

WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
