Summit HC20BBADA 20″ Wide Under-Cabinet Convertible Range Hood – Black Finish (ADA Compliant)
Customer service
Features
- SKU SA-HC20BBADA
Summit's selection of specialty appliances includes accessible range hoods specially designed to be installed in compliance with Section 308 and 309 of the ADA Guidelines.

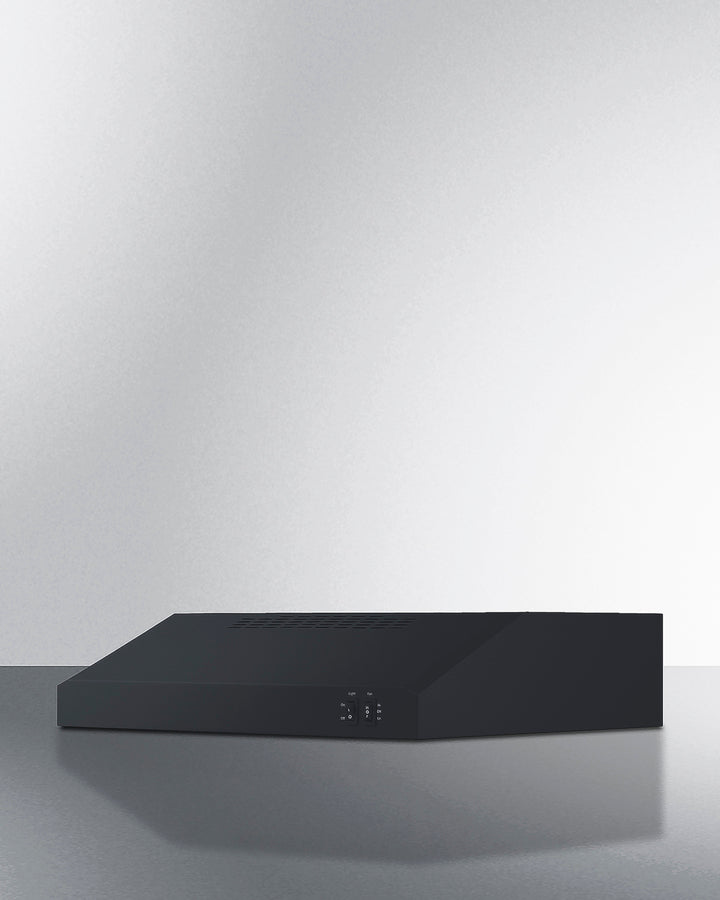

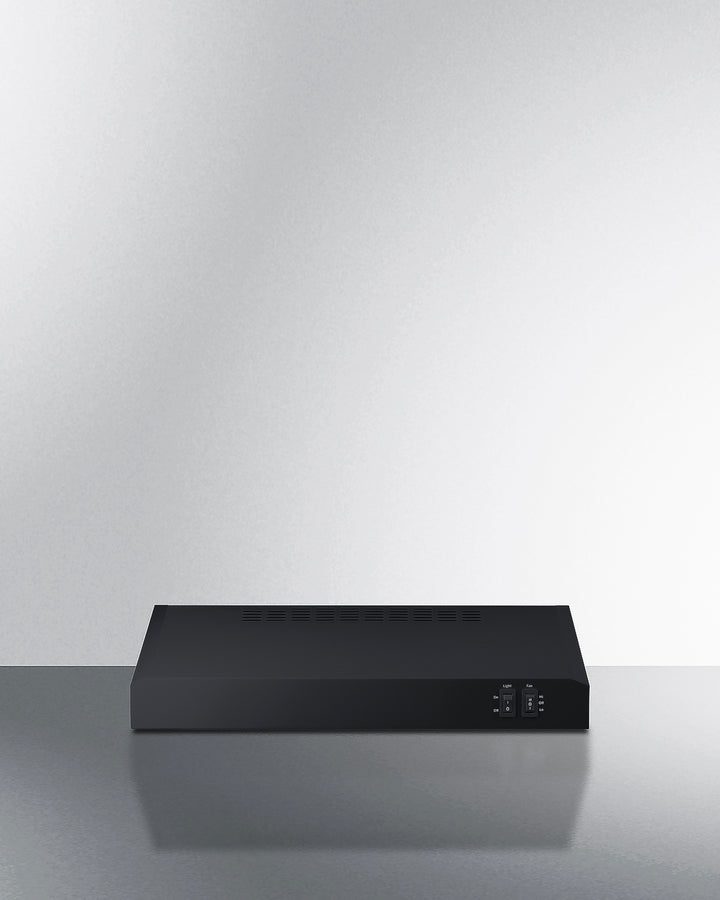

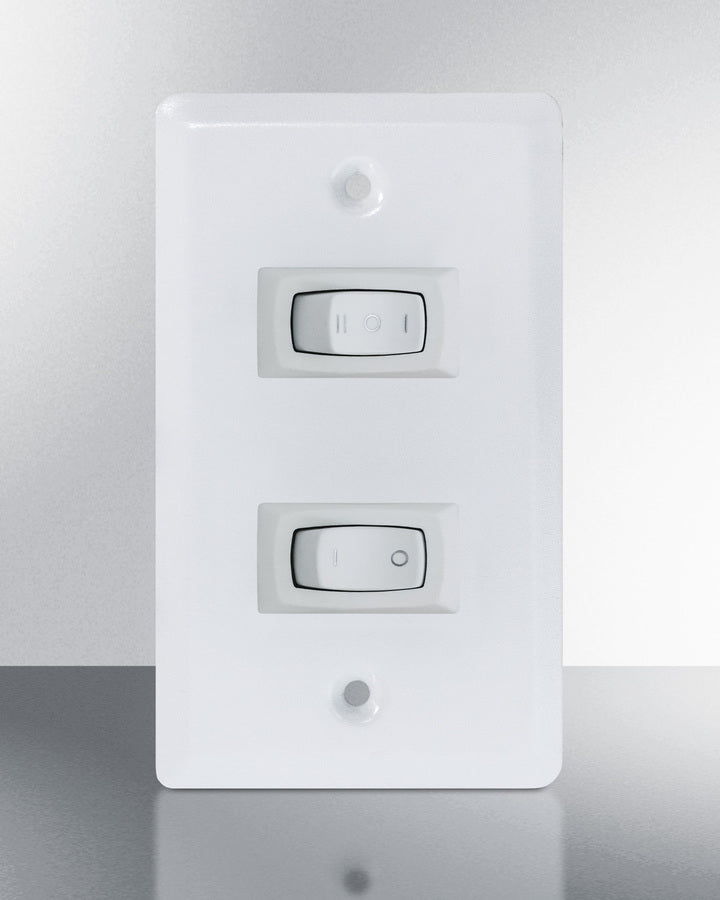

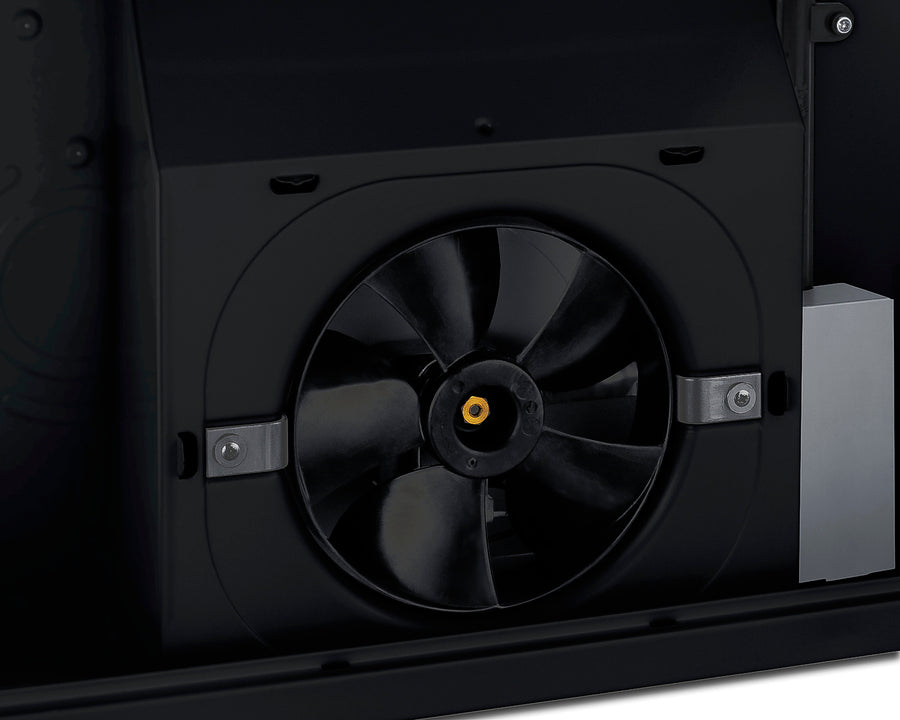

Model HC20BBADA is a 20" wide range hood ideal for apartments, senior living kitchens, hotel suites, and other smaller spaces. It comes in a jet black finish constructed from 21 gauge galvanized steel for a clean look and durable design. We include a remote terminal block and wall switch cover to allow the controls to be installed separately from the hood and at a lower, accessible height in accordance with ADA guidelines. The fan can be set at a high or low setting to best meet your ventilation needs. This unit can operate at 270 CFM for thorough ventilation. Airflow is directed upwards at a slight angle, ensuring smoke and odors won't blow towards the home chef.

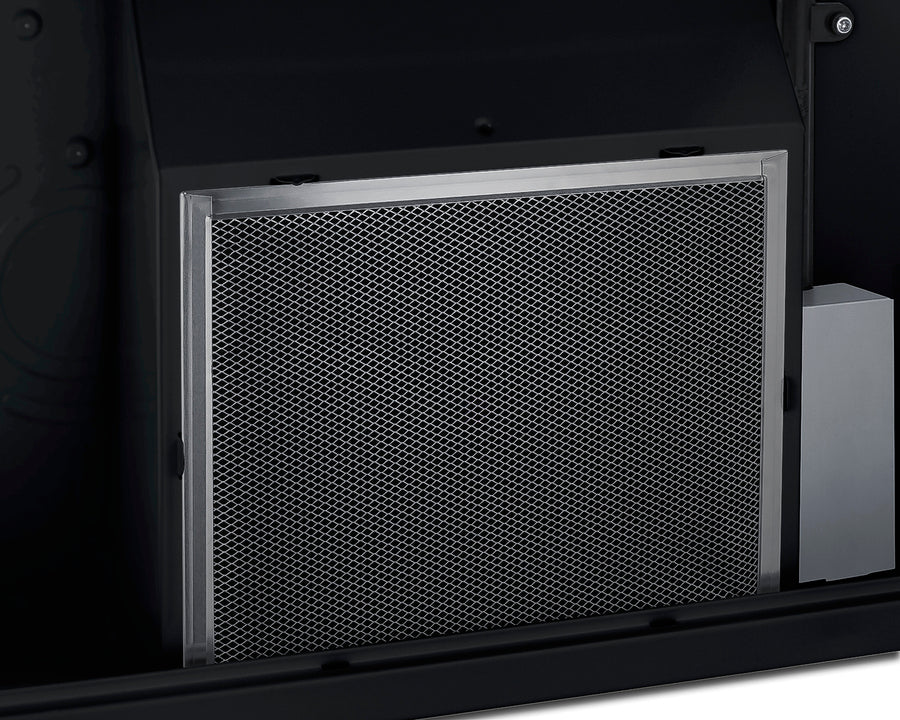

This hood ships for ductless/recirculating ventilation (where no exhaust connection to the outside is available) but is convertible for horizontal or vertical ducted ventilation (3 1/4" x 10" rectangular ducting or 7" round, transition required). We include a combination aluminum mesh/charcoal filter to absorb grease, smoke, and odors. This unit accepts a standard light bulb (not included). Both the filter and lens cover snap in place, with no tools required to change out as needed. Note: this hood does not include a power cord and is designed to be hard-wired by a licensed professional.
In addition to this ADA compliant range hood, Summit manufactures this series in additional colors, as well as shell hoods and wall-mounted European hoods. Browse the full Summit product line to explore your options.
|
Overview |
Refrigerator-Freezer |
||
| Nominal Height | 6.0" (15 cm) | Installation | Under Cabinet |
| Height of Cabinet | 5.5" (14 cm) | Venting | Convertible |
| Nominal Width | 20.0" (51 cm) | Number of Fan Speeds | 2 |
| Width | 20.0" (51 cm) | Maximum Air Movement | 270.0 CFM |
| Nominal Depth | 20.0" (51 cm) | Sone Rating | 6 |
| Depth | 20.0" (51 cm) | Duct Shape | 3"1/4" x 10" rectangular or 7" round |
| Cabinet | Black | ||
| US Electrical Safety | ETL | ||
| Canadian Electrical Safety | ETL-C | ||
| Amps | 1.7 | ||
| Voltage/Frequency | 115 V AC/60 Hz | ||
| Weight | 11.0 lbs. (5 kg) | ||
| Parts & Labor Warranty | 1 Year | ||
| UPC | 761101107196 |
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
