Summit HC20SSADA 20″ Wide Under-Cabinet Convertible Range Hood – Stainless Steel (ADA Compliant)

SKU: SA-HC20SSADA
(0)
$291.80
Durable Stainless Steel Finish & Easy Maintenance — Constructed from real stainless steel (horizontal grain); includes snap-in aluminum mesh/charcoal filter for grease & odor capture; angled airflow design keeps smoke away from the user.
Compact Low-Profile Build (5.5″ H × 20″ W × 20″ D) — Fits neatly under standard cabinetry while offering full ventilation capacity.
Powerful 270 CFM Two-Speed Fan — Delivers thorough ventilation of the cooking area; designed to work efficiently in both high and low fan modes.
5.5" H x 20.0" W x 20.0" D
(14cm H x 51cm W x 51cm D)
5 years - Compressor Warranty
1 year - Parts & Labor Warranty
Free Freight Shipping - Includes lift-gate service (curbside delivery). White Glove service available by quote: 800-626-0854 or sales@hegemonsupply.com

Customer service

Video chat Chat Email 800-626-0854

Features

  • SKU SA-HC20SSADA

20" Wide ADA Compliant Range Hood:
Convertible hood designed for ducted or ductless installation in compliant with ADA guidelines

ADA compliant design:

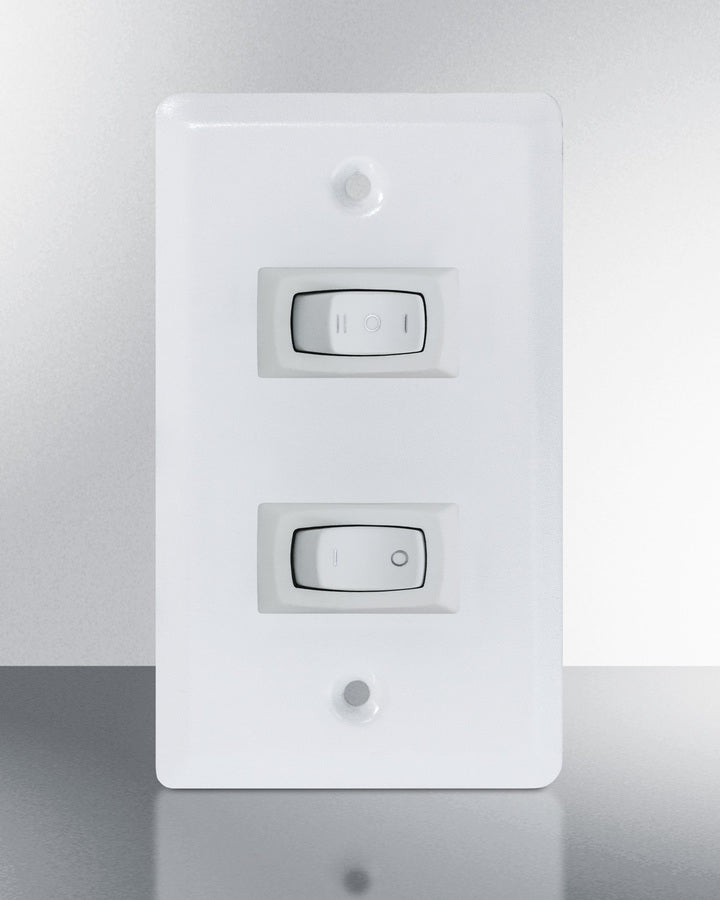

Hood is wired to run off a wall switch for improved accessibility, with a remote terminal block included

Under cabinet range hood:
Low profile design offers classic style to finish your kitchen

20 inch width:
Sized for use over 20 inch cooking surfaces (additional sizes available)

Convertible design:
Can be used for ducted venting to the outside or recirculating ventilation where no external venting is possible

Stainless steel finish:
Real stainless steel with a horizontal grain for a clean, professional look

Easy conversion:
Ships pre-set for recirculating mode but can be converted in a few simple steps

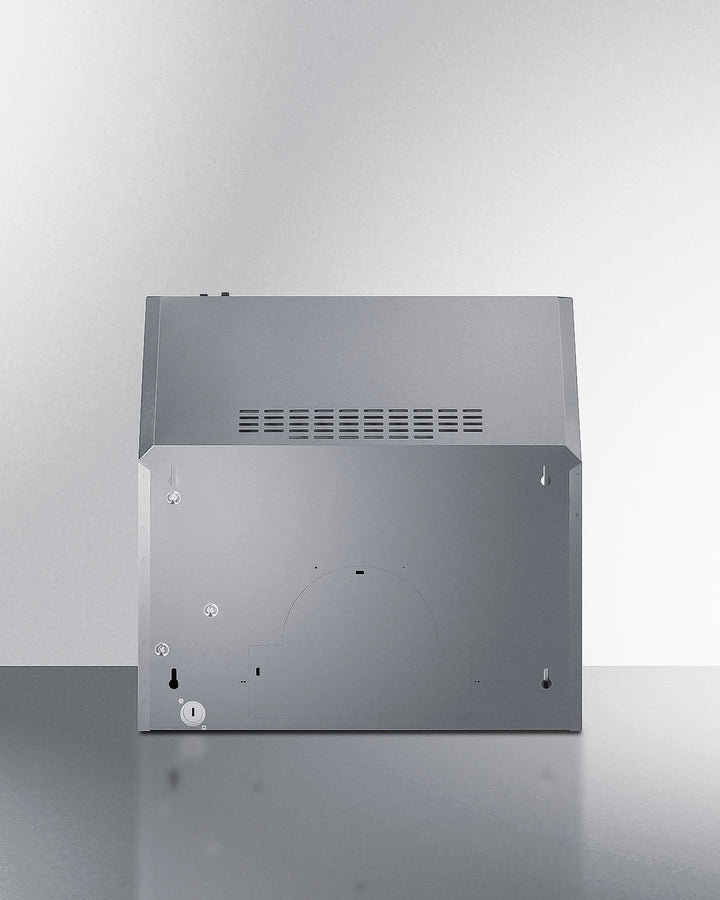

Versatile top or rear exhaust:
Can be connected to 3 1/4" x 10" vertical or horizontal exterior venting or 7" round vertical (transition required for both)

Powerful ventilation:
Can operate at 270 CFM to ensure thorough ventilation of your cooking surface

Angled airflow:
Vents are set at a slight upwards angle, ensuring smoke and odors won't be directed towards the user

Durable 21 gauge steel construction:
Stainless steel exterior with a body that's 53% heavier gauge than most of the industry's under cabinet hoods

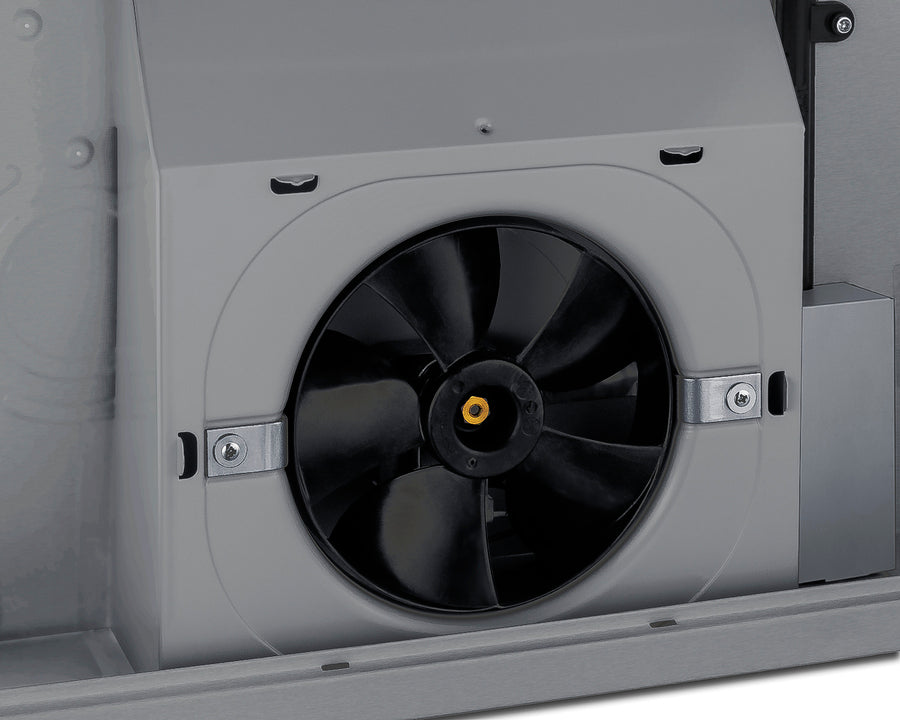

Two-speed fan:
High and low setting to allow proper ventilation of your kitchen as needed

Accepts a standard bulb:
Designed to hold a standard incandescent light bulb with easy installation and no tools required

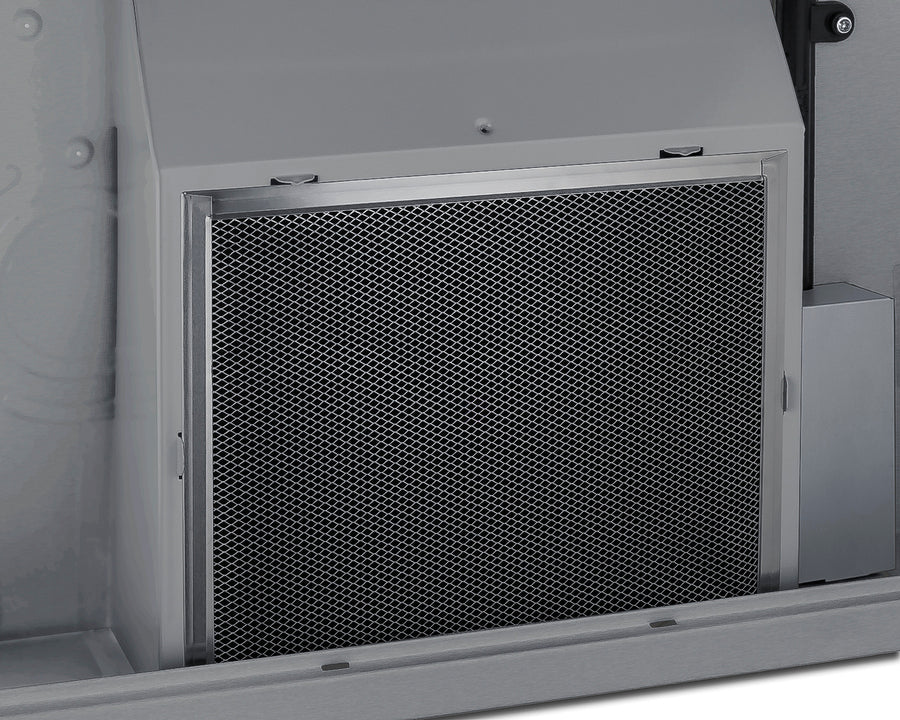

Combination charcoal/aluminum mesh filter:
Aluminum filter includes charcoal filler to absorb smoke, grease, and odors for a cleaner kitchen experience

Removable filter:
Snap-in design allows you to easily remove the filter for fast replacing as needed

Rocker switch controls:
Front-located on/off and high/low switches make it easy to manage the light and fan

Professional installation:
Designed to be hard-wired by a licensed professional

Made in North America:
TAA compliant

Summit's selection of specialty appliances includes accessible range hoods specially designed to be installed in compliance with Section 308 and 309 of the ADA Guidelines.

Model HC20SSADA is a 20" wide range hood ideal for apartments, senior living kitchens, hotel suites, and other smaller spaces.It comes in a stainless steel finish with a horizontal grain constructed from 21 gauge galvanized steel for lasting durability. We include a remote terminal block and wall switch cover to allow the controls to be installed separately from the hood and at a lower, accessible height in accordance with ADA guidelines. The fan can be set at a high or low setting to best meet your ventilation needs. This unit can operate at 270 CFM for thorough ventilation. Airflow is directed upwards at a slight angle, ensuring smoke and odors won't blow towards the home chef.

This hood ships for ductless/recirculating ventilation (where no exhaust connection to the outside is available) but is convertible for horizontal or vertical ducted ventilation (3 1/4" x 10" rectangular ducting or 7" round, transition required). We include a combination aluminum mesh/charcoal filter to absorb grease, smoke, and odors. This unit accepts a standard light bulb (not included). Both the filter and lens cover snap in place, with no tools required to change out as needed. Note: this hood does not include a power cord and is designed to be hard-wired by a licensed professional.

In addition to this ADA compliant range hood, Summit manufactures this series in additional colors, as well as shell hoods and wall-mounted European hoods. Browse the full Summit product line to explore your options.

 Overview

Refrigerator-Freezer
Nominal Height 6.0" (15 cm) Installation Under Cabinet
Height of Cabinet 5.5" (14 cm) Venting Convertible
Nominal Width 20.0" (51 cm) Controls Dial
Width 20.0" (51 cm) Number of Fan Speeds 2
Nominal Depth 20.0" (51 cm) Maximum Air Movement 270.0 CFM
Depth 20.0" (51 cm) Sone Rating 6
Cabinet Stainless Steel Duct Shape 3"1/4" x 10" rectangular or 7" round
US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Amps 1.7

Voltage/Frequency 115 V AC/60 Hz

Weight 11.0 lbs. (5 kg)

Parts & Labor Warranty 1 Year

UPC 761101107202

BROCHURE

ASSEMBLY DRAWING

SUPPORT

WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
