Summit HC24WWADA 24" ADA-Compliant Under Cabinet Convertible Range Hood with 270 CFM Ventilation – White
🔒 Secure Checkout
Need Help Choosing the Right Equipment?
Our specialists can help with product selection, freight coordination, installation questions, and bulk quotes.
Summit Appliance Product Template
Description & Features
The Summit HC24WWADA is a 24-inch ADA-compliant under-cabinet range hood designed for apartments, hotel suites, senior living facilities, and other compact kitchens requiring accessible operation. Featuring a 270 CFM two-speed blower, durable 21-gauge steel construction, and convertible ducted or recirculating ventilation, this white-finish hood delivers effective smoke and odor removal while meeting ADA accessibility guidelines.
Features
-

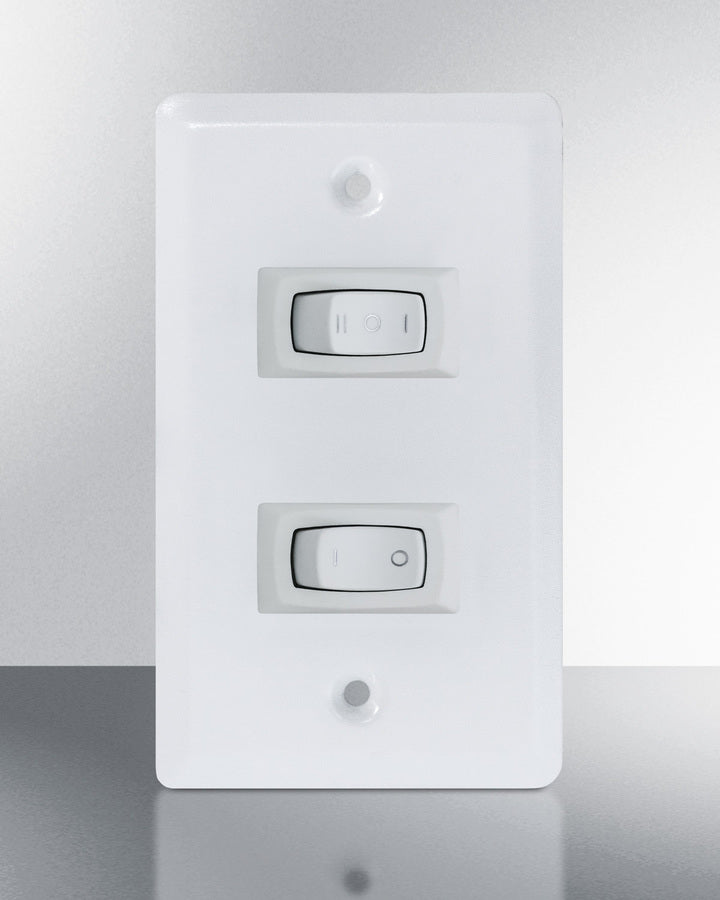

- ADA-compliant design with remote terminal block for accessible wall-mounted controls
- Convertible installation supports ducted or recirculating ventilation

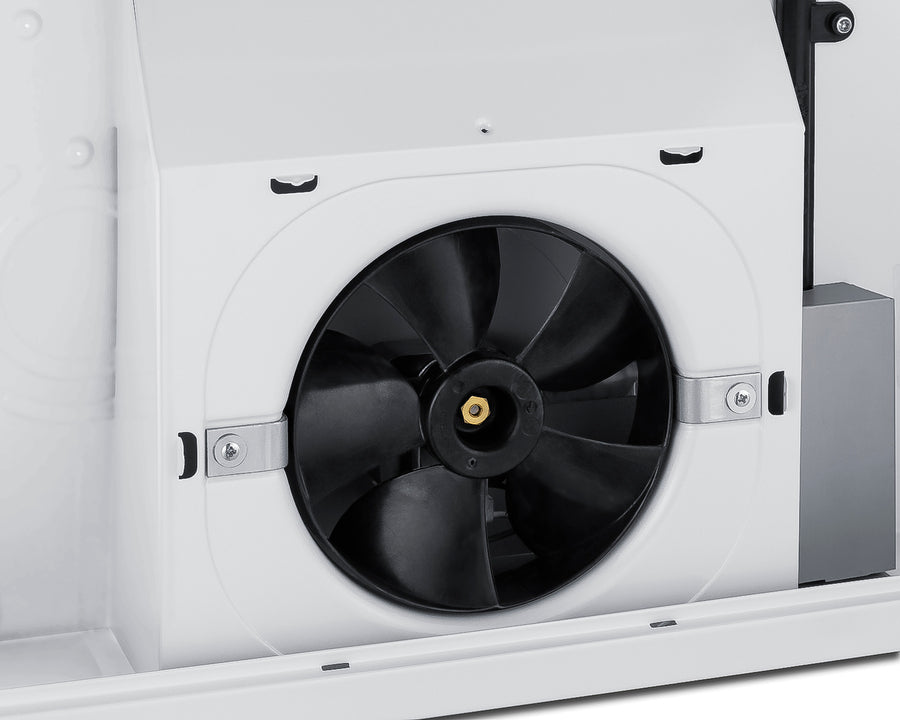

- Powerful 270 CFM blower with two-speed fan settings
- Durable 21-gauge powder-coated steel construction

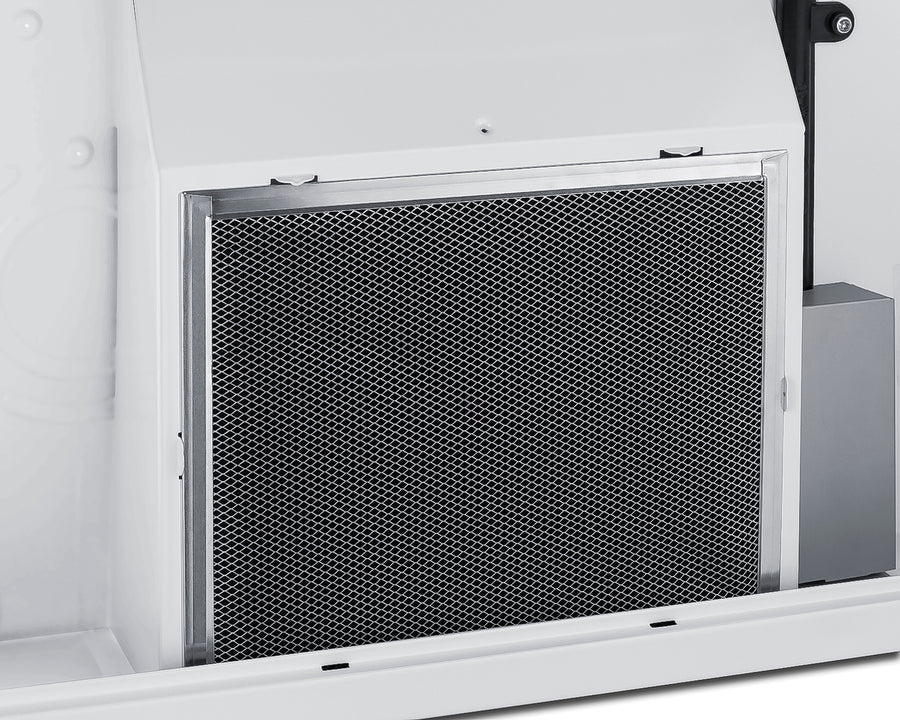

- Combination charcoal and aluminum mesh filter absorbs grease and odors

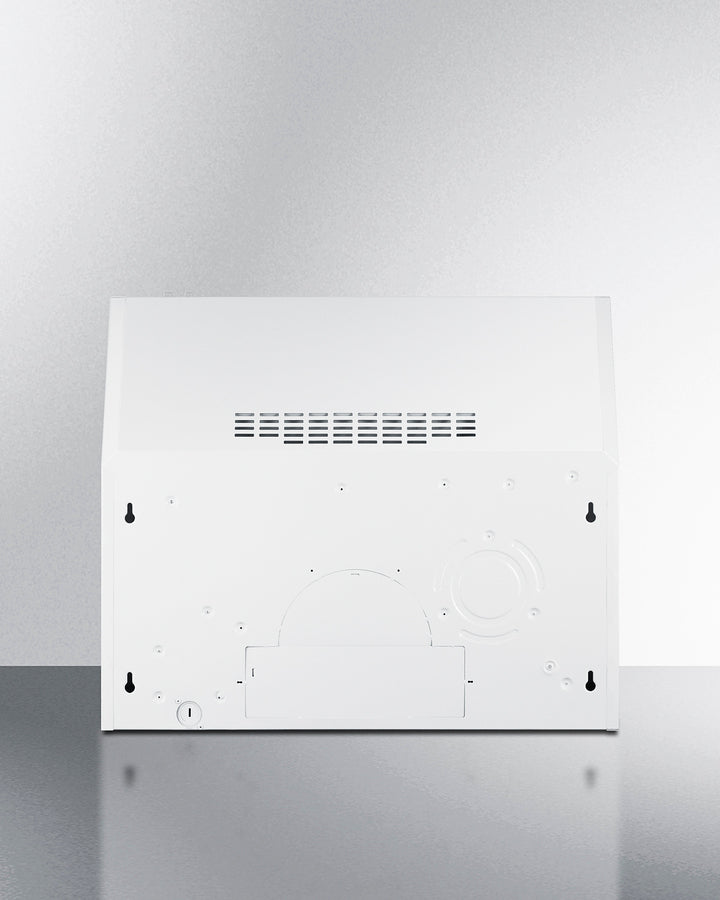

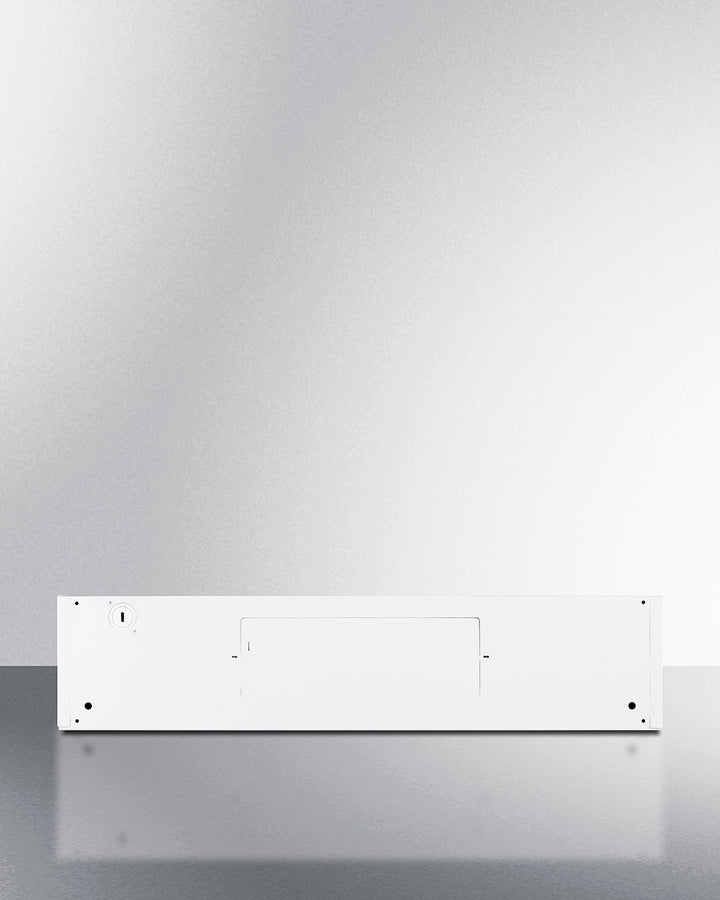

- Top or rear exhaust options for flexible installation
Specifications
Overview
| Nominal Height | 6.0" (15 cm) |
| Height of Cabinet | 5.5" (14 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.88" (61 cm) |
| Nominal Depth | 20.0" (51 cm) |
| Depth | 20.0" (51 cm) |
| Cabinet | White |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.7 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 12.0 lbs. (5 kg) |
| Parts & Labor Warranty | 1 Year |
| UPC | 761101107219 |
Range Hood
| Installation | Under Cabinet |
| Venting | Convertible |
| Controls | Dial |
| Number of Fan Speeds | 2 |
| Maximum Air Movement | 270.0 CFM |
| Sone Rating | 6 |
| Duct Shape | 3"1/4" x 10" rectangular or 6/7" round with transition |
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
