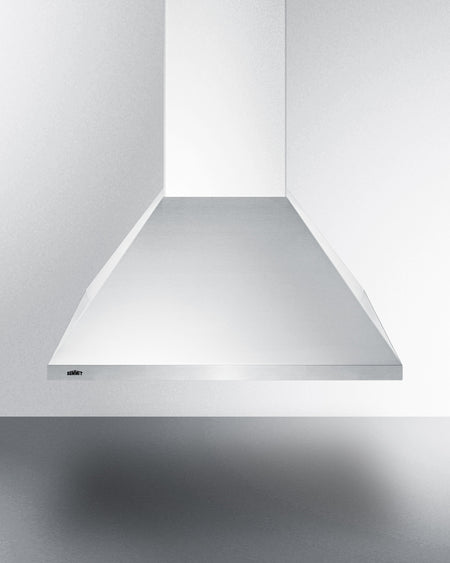

Summit SEH1524SSADA 24″ Wall-Mounted Convertible Range Hood – ADA-Compliant Stainless Steel, 400 CFM Blower, LED Lights

SKU: SA-SEH1524SSADA
(0)
$620.00
LED Lighting & Adjustable Chimney for Convenience & Style – Equipped with two pre-installed LED lights to brighten the cooking area; includes a telescoping chimney extender to adjust hood height (min 25.5", max 37.25") for varied ceiling or cabinet heights.
Convertible Ventilation — Ducted or Ductless (Filters Included) – Capable of venting outside through a 6″ round duct or recirculating air when outside venting isn’t possible; includes charcoal filters for grease and odor control in recirculating mode.
Powerful 400 CFM Internal Blower with 3-Speed Fan – Built-in blower moves up to 400 cubic feet per minute with three fan speeds, ensuring effective removal of smoke, steam, and cooking odors even during heavy cooking.
37.25" H x 23.56" W x 19.69" D
(95cm H x 60cm W x 50cm D)
1 year - Parts & Labor Warranty
Free shipping at checkout!

Customer service

Video chat Chat Email 800-626-0854

Features

  • SKU SA-SEH1524SSADA

24" wide wall-mounted range hood:
European style range hood designed to bring effective ventilation over 24" wide cooking surfaces

ADA-compliant design:
Control panel comes on a remote terminal block to be installed according to ADA compliant guidelines for improved accessibility (some assembly required)

Convertible design with no additional purchase necessary:
Can be used for ducted venting to the outside or recirculating ventilation where no external venting is possible

Charcoal filter set included:
Two round carbon filters attach to the blower to absorb grease and odors when using the hood in recirculating mode

Powerful ventilation:
400 CFM blower to effectively remove smoke and cooking odors from your kitchen

Cord included:
Pre-installed power cord with 3-prong plug for 115V outlets

LED lighting (bulbs included):
Includes two pre-installed LED bulbs to illuminate your cooking surface

Adjustable height:
Includes a telescoping chimney extender that allows you to adjust the overall height between 25 1/2" to 37 1/4"

Stainless steel finish:
Durable construction in an attractive style with a horizontal grain

Slide controls:
Easy and intuitive controls let you adjust your ventilation and lighting as needed

Multi-speed fan:
Choose from three speeds to provide the proper level of ventilation for your cooking

Removable aluminum cassette filters:
Two mesh filters capture grease particles and are removable for easy cleanup

6" round ducting:
Ideal for most kitchen settings

Classic design:
Popular pyramid shape offers an attractive look to complement any style of kitchen

Summit's selection of European-style range hoods includes units specially designed to be installed in compliance with Sections 308 and 309 of the ADA Guidelines.

Sized at 24" wide, model SEH1524SSADA is perfect for all kitchens looking for elegant style and powerful ventilation. This unit features brushed stainless steel construction with a horizontal grain and a rectangular T-shaped canopy to suit any setting. We include a chimney extender that lets you adjust the height to best fit your space. Two pre-installed LED light bulbs offer convenient illumination for your cooking surface.

The SEH1524SSADA comes with a remote terminal block and wall switch cover to allow the controls to be installed separately from the hood and at a lower, accessible height following ADA guidelines. The 3-speed fan and 15-minute timer are operated from an easy-to-use slider control panel. Some assembly is required.

This range hood can be used ducted with a 6" round duct, or for recirculating/ducted operation. We include two charcoal filters for use in kitchens where there is no exhaust connection to the outside. Two aluminum mesh cassette filters offer plenty of ventilation coverage. This model includes a pre-installed 3-prong 115V cord and mounting bracket.

Additional ADA-compliant wall-mounted and under cabinet range hoods are available in a variety of sizes and styles. Browse our website for more choices.

 Overview

Range Hood
Nominal Height 38.0" (97 cm) Installation Wall-Mounted
Height of Cabinet 37.25" (95 cm) Venting Convertible
Nominal Width 24.0" (61 cm) Controls Slide
Width 23.56" (60 cm) Light Yes
Nominal Depth 20.0" (51 cm) Number of Lights 2
Depth 19.69" (50 cm) Light Type LED
Door Stainless Steel Number of Fan Speeds 3
US Electrical Safety ETL Maximum Air Movement 400.0 CFM
Amps 2.6 Minimum Height 25.5" (65 cm)
Voltage/Frequency 115 V AC/60 Hz Maximum Height 37.25" (95 cm)
Weight 39.0 lbs. (18 kg) Duct Shape 6" Round
Parts & Labor Warranty 1 Year
UPC 761101107257
