SUMMIT COMMERCIAL offers a quality line of commercially approved drawer refrigerators assembled in the U.S.A. and fully constructed from stainless steel.

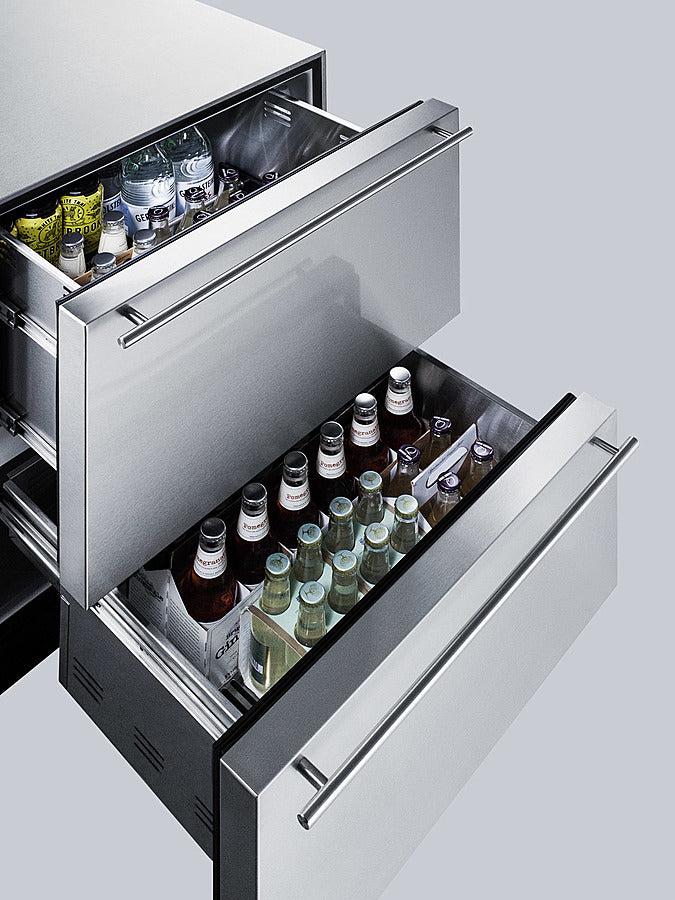

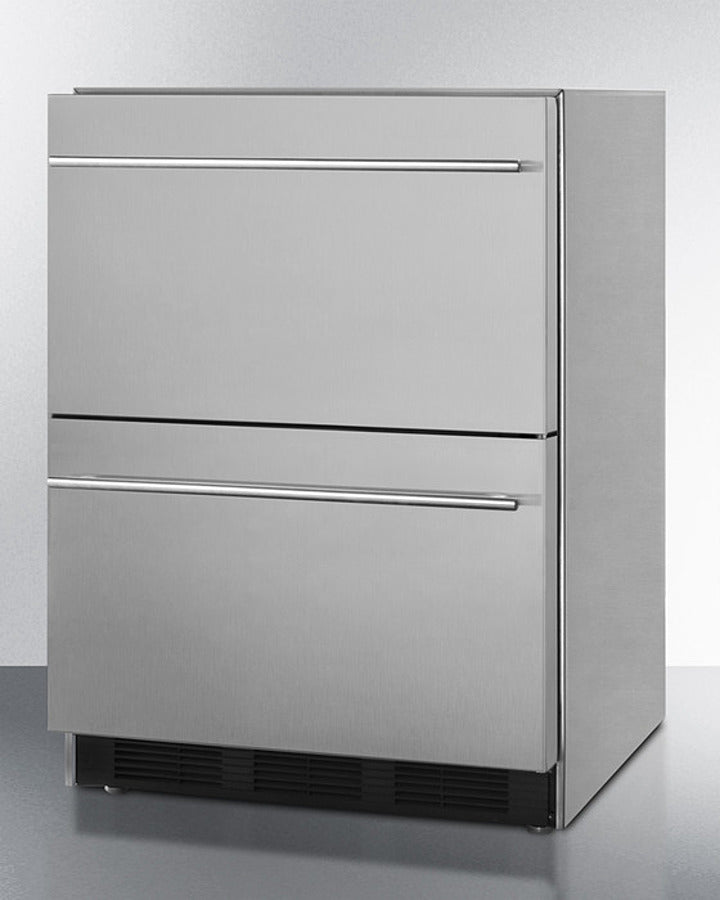

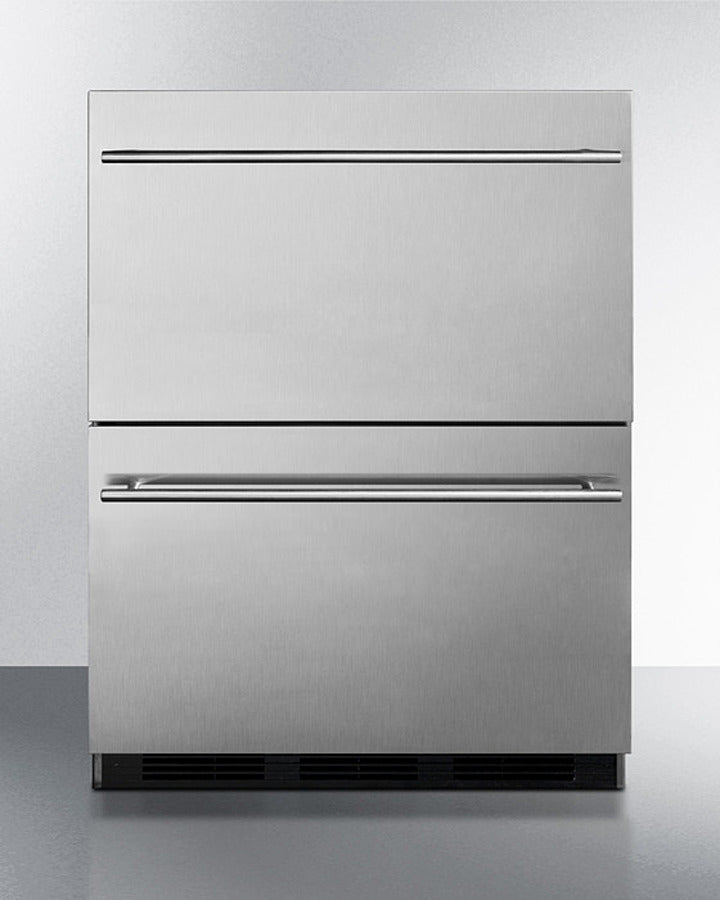

The SP6DBS2D7 is a 24" wide two-drawer all-refrigerator that can be used built-in or freestanding. Two sliding drawers feature sleek stainless steel handles and magnetic gaskets to ensure a tight seal when closed. The cabinet and drawers are constructed from durable stainless steel to ensure long-lasting luxury with a professional look. This unit includes an adjustable divider that lets you better organize your storage. We offer an optional conversion kit that allows the drawers to be customized with overlay panels (see Panel Kit).
Automatic defrost ensures minimum user maintenance, with a dial thermostat for easy temperature management. This model is ETL-S listed to NSF-7 standards for commercial use. For this unit in lower ADA compliant height, see the SP6DBS2D7ADA.
|
Overview |
Refrigerator |
|
|
| Nominal Height | 34.0" (86 cm) | Height Adjustable | 1 |
| Height of Cabinet | 33.25" (84 cm) | Thermostat Type | Dial |
| Nominal Width | 24.0" (61 cm) | Fan Type | Interior and Exterior |
| Width | 23.75" (60 cm) | Refrigerant Type | R600a |
| Nominal Depth | 24.0" (61 cm) | Refrigerant Amount | 0.64oz. |
| Depth | 23.88" (61 cm) | High Side PSI | 180.0 |
| Depth with Handle | 25.38" (64 cm) | Low Side PSI | 80.0 |
| Depth with door at 90° | 41.25" (105 cm) | Level Legs Qty | 4 |
| Capacity | 3.0 cu.ft. (85 L) |
Drawer Dimensions
|
|
|---|---|---|---|
| Defrost Type | Automatic | Interior Height 1 | 9.5" (24 cm) |
| Door | Stainless Steel | Interior Width 1 | 18.75" (48 cm) |
| Cabinet | Stainless Steel | Interior Depth 1 | 12.0" (30 cm) |
| US Electrical Safety | ETL | Interior Height 2 | 12.63" (32 cm) |
| Canadian Electrical Safety | ETL-C | Interior Width 2 | 17.25" (44 cm) |
| Sanitation | ETL-S | Interior Depth 2 | 16.0" (41 cm) |
| Amps | 1.2 |
Dimensions
|
|
| Weight | 120.0 lbs. (54 kg) | Compressor Step Height | 5.75" (15 cm) |
| Parts & Labor Warranty | 1 Year | Compressor Step Width | 18.75" (48 cm) |
| Compressor Warranty | 5 Years | Compressor Step Depth | 4.0" (10 cm) |
| UPC | 761101069500 | ||
|
ASSEMBLY DRAWING |
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
