Summit SP6DBS2D7ADA 24″ Wide ADA-Height 2-Drawer All-Refrigerator – Stainless Steel Inside & Out
🔒 Secure Checkout
Need Help Choosing the Right Equipment?
Our specialists can help with product selection, freight coordination, installation questions, and bulk quotes.
SUMMIT COMMERCIAL offers a quality line of commercially approved drawer refrigerators assembled in the U.S.A. and fully constructed from stainless steel.

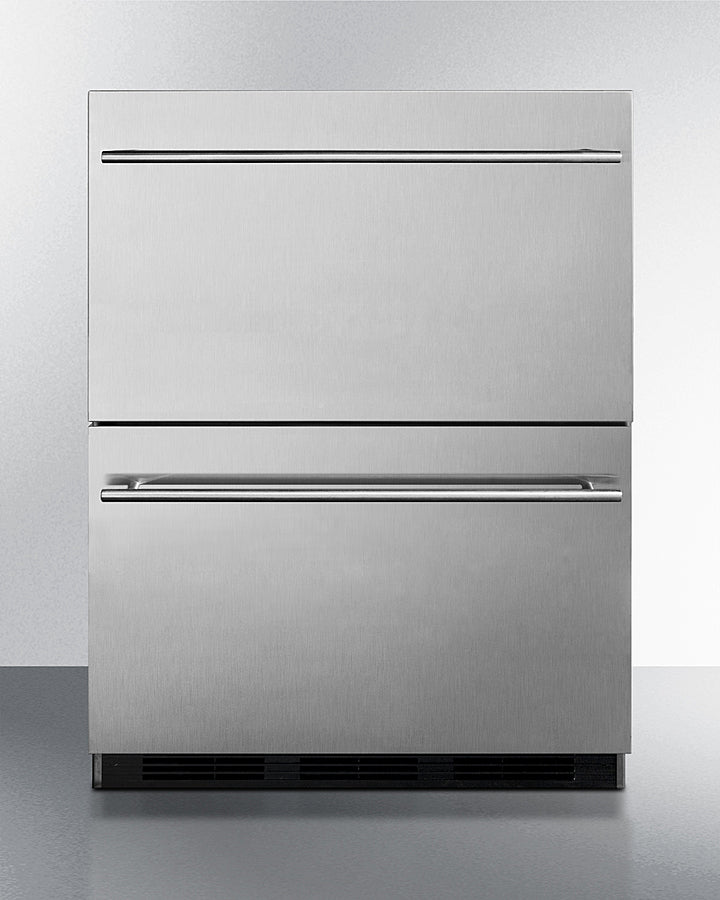

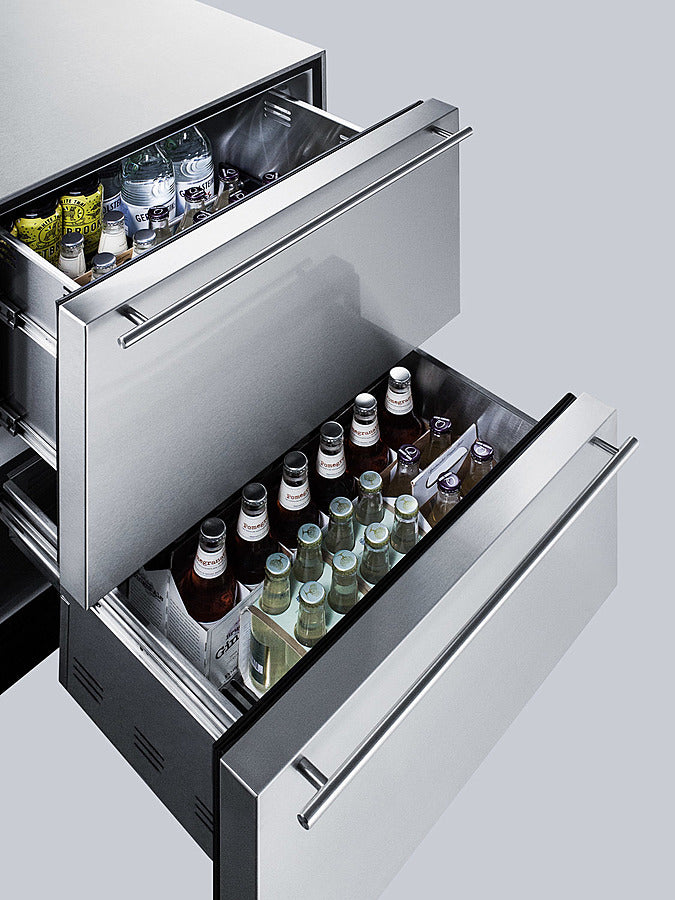

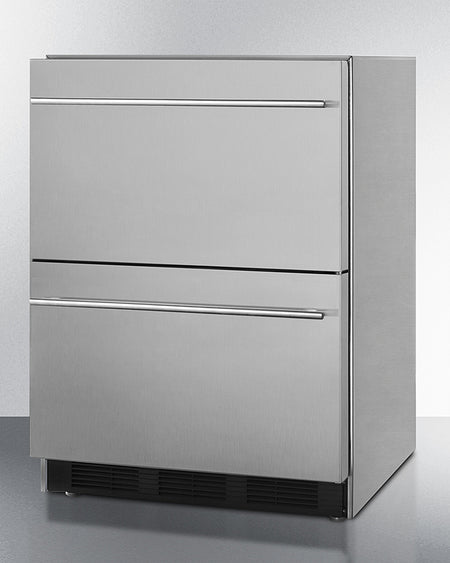

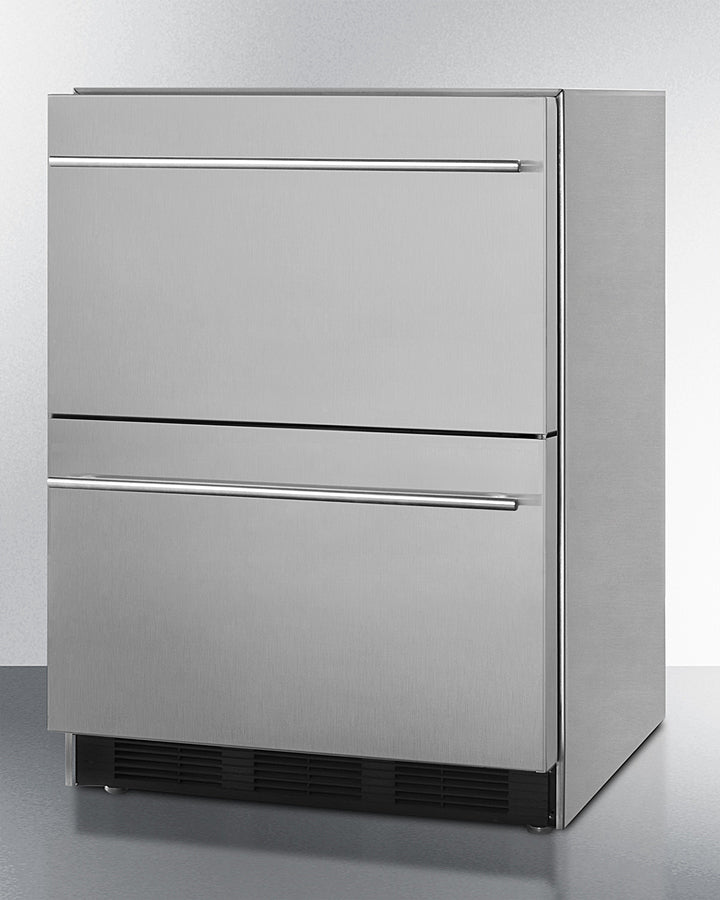

The SP6DBS2D7ADA is a 24" wide two-drawer all-refrigerator that can be used built-in or freestanding. At 32" high, this unit is designed for use under lower ADA compliant counters. Two sliding drawers feature sleek stainless steel handles and magnetic gaskets to ensure a tight seal when closed. This unit includes an adjustable divider that lets you better organize your storage. The cabinet and drawers are constructed from durable stainless steel to ensure long-lasting luxury with a professional look. We offer an optional conversion kit that allows the drawers to be customized with overlay panels (see Panel Kit).
Automatic defrost ensures minimum user maintenance, with a dial thermostat for easy temperature management. This model is ETL-S listed to NSF-7 standards for commercial use. For this unit in standard counter height, see the SP6DBS2D7.
|
Overview |
Refrigerator |
|
|
| Nominal Height | 32.0" (81 cm) | Thermostat Type | Dial |
| Height of Cabinet | 32.25" (82 cm) | Fan Type | Interior and Exterior |
| Nominal Width | 24.0" (61 cm) | Refrigerant Type | R600a |
| Width | 23.63" (60 cm) | Refrigerant Amount | 0.64oz. |
| Nominal Depth | 24.0" (61 cm) | High Side PSI | 180.0 |
| Depth | 23.88" (61 cm) | Low Side PSI | 80.0 |
| Depth with Handle | 25.38" (64 cm) | Level Legs Qty | 4 |
| Depth with door at 90° | 41.25" (105 cm) |
Drawer Dimensions
|
|
|---|---|---|---|
| Capacity | 3.1 cu.ft. (88 L) | Interior Height 1 | 9.5" (24 cm) |
| Defrost Type | Automatic | Interior Width 1 | 18.75" (48 cm) |
| Door | Stainless Steel | Interior Depth 1 | 12.0" (30 cm) |
| Cabinet | Stainless Steel | Interior Height 2 | 12.63" (32 cm) |
| US Electrical Safety | ETL | Interior Width 2 | 17.25" (44 cm) |
| Canadian Electrical Safety | ETL-C | Interior Depth 2 | 16.0" (41 cm) |
| Sanitation | ETL-S |
Dimensions
|
|
| Amps | 1.2 | Compressor Step Height | 5.75" (15 cm) |
| Weight | 120.0 lbs. (54 kg) | Compressor Step Width | 18.75" (48 cm) |
| Parts & Labor Warranty | 1 Year | Compressor Step Depth | 4.0" (10 cm) |
| Compressor Warranty | 5 Years | ||
| UPC | 761101069517 | ||
|
ASSEMBLY DRAWING |
