Summit ACF48WADA 24″ Wide ADA-Height Built-In All-Freezer – Frost-Free, White Cabinet
🔒 Secure Checkout
Need Help Choosing the Right Equipment?
Our specialists can help with product selection, freight coordination, installation questions, and bulk quotes.
Accucold by Summit Appliance carries a range of general purpose and medical all-freezers designed for reliable, frost-free storage under the counter.

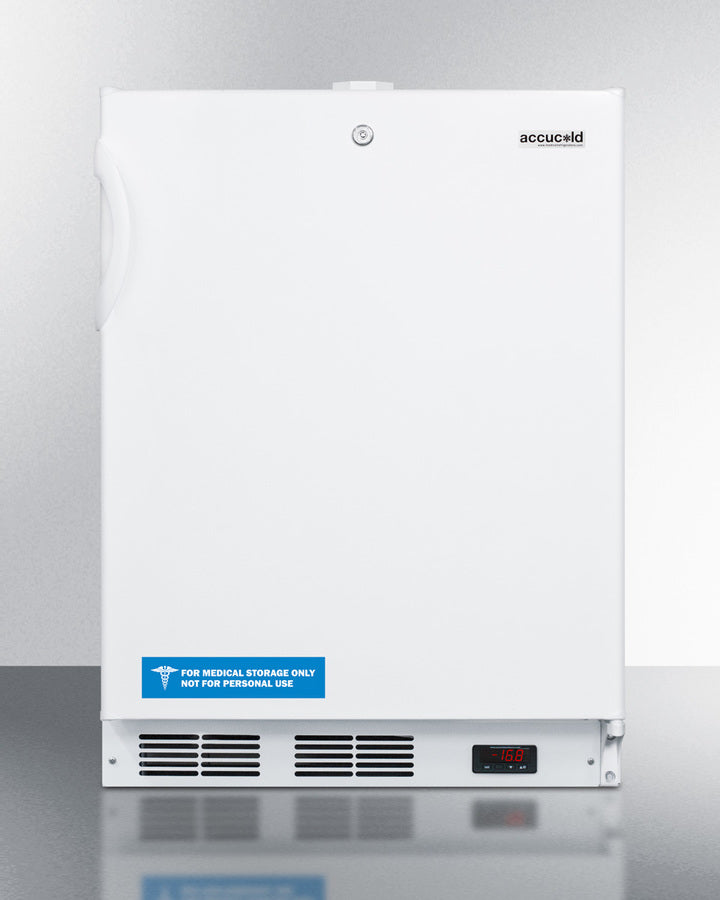

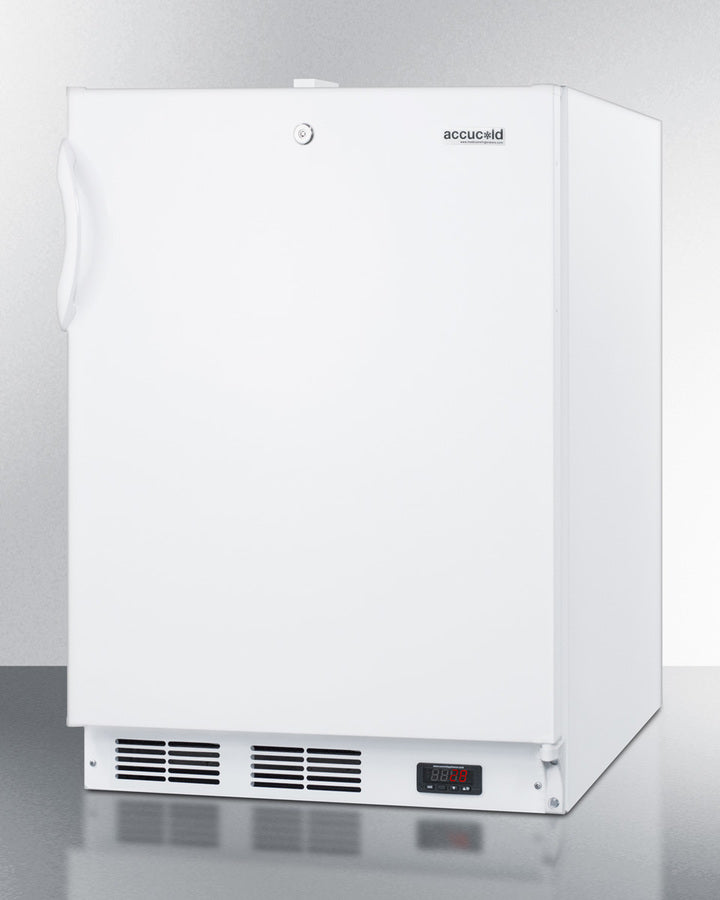

At 24" wide and 32" high, the ACF48WADA is ideally sized for various institutional settings following ADA guidelines for lower counter height. The front-breathing design allows built-in installation, while the fully finished cabinet also allows freestanding use. The user-reversible door includes a factory installed keyed lock for added security. This model comes in a white finish and includes a hospital grade cord with a 'green dot' plug for added security in high traffic areas.

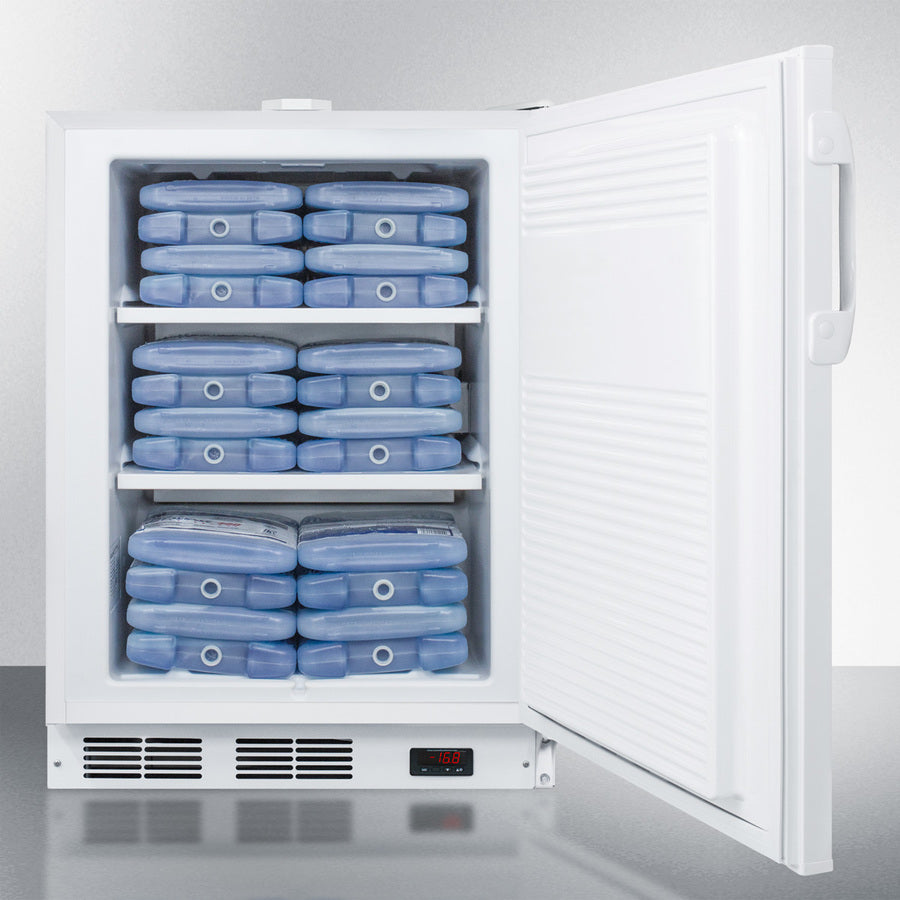

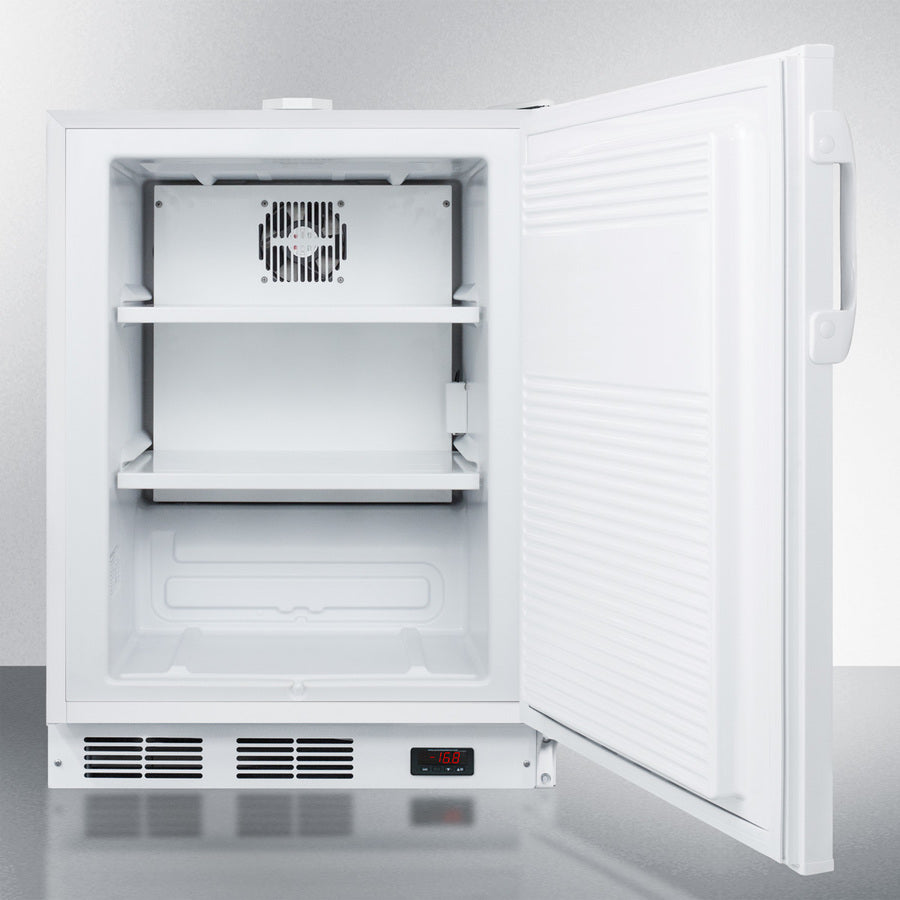

Full frost-free operation eliminates the need to defrost the interior, with an internal fan to keep the interior evenly cooled from top to bottom. A digital thermostat is located in the front kickplate, letting users manage the temperature without having to open the door. The interior includes two removable steel shelves.
Made in the USA, the ACF48WADA offers quality freezer storage in a conveniently sized and featured unit. It is ETL-S listed to NSF-7 commercial standards and meets UL-471. Additional door finishes are available. This model can also be paired with the matching FF7LWBIADA all-refrigerator.
|
Overview |
Refrigerator-Freezer |
|
|
| Nominal Height | 32.0" (81 cm) | Door Swing | RHD |
| Height of Cabinet | 32.0" (81 cm) | Reversible | Yes |
| Height to Hinge Cap | 32.25" (82 cm) | Shelf Type | Steel |
| Nominal Width | 24.0" (61 cm) | Shelf Qty | 2 |
| Width | 23.63" (60 cm) | Thermostat Type | Digital |
| Nominal Depth | 24.0" (61 cm) | Fan Type | Interior and Exterior |
| Depth | 23.5" (60 cm) | Refrigerant Type | R134a |
| Depth with Handle | 24.25" (62 cm) | Refrigerant Amount | 4.2 oz. |
| Depth with door at 90° | 45.13" (115 cm) | High Side PSI | 285.0 |
| Capacity | 3.1 cu.ft. (88 L) | Low Side PSI | 70.0 |
| Defrost Type | Frost-Free | Level Legs | 4 |
| Door | White | Temperature Range | -5 to 10ºF/-20 to -12ºC |
| Cabinet | White | ||
| US Electrical Safety | ETL | ||
| Canadian Electrical Safety | ETL-C | ||
| Sanitation | ETL-S | ||
| Amps | 1.5 | ||
| Voltage/Frequency | 115 V AC/60 Hz | ||
| Weight | 100.0 lbs. (45 kg) | ||
| Parts & Labor Warranty | 1 Year | ||
| Compressor Warranty | 5 Years | ||
| UPC | 761101051727 |
|
ASSEMBLY DRAWING |
