Summit SWC007 6" Wide 7-Bottle Built-In Wine Cellar – ADA Compliant, Black Cabinet
🔒 Secure Checkout
Need Help Choosing the Right Equipment?
Our specialists can help with product selection, freight coordination, installation questions, and bulk quotes.
Summit Appliance Product Template
Description & Features

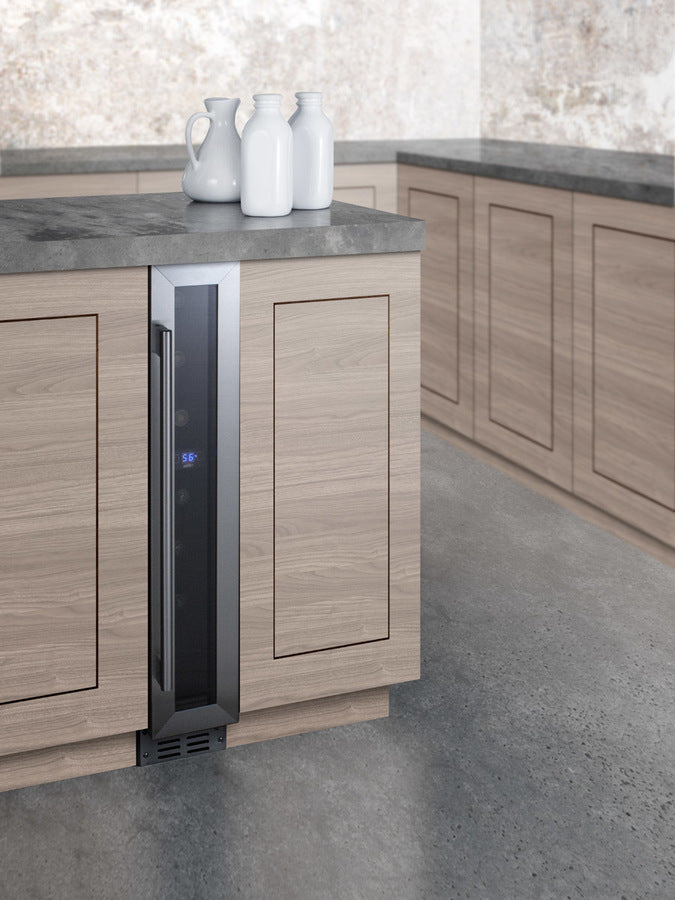

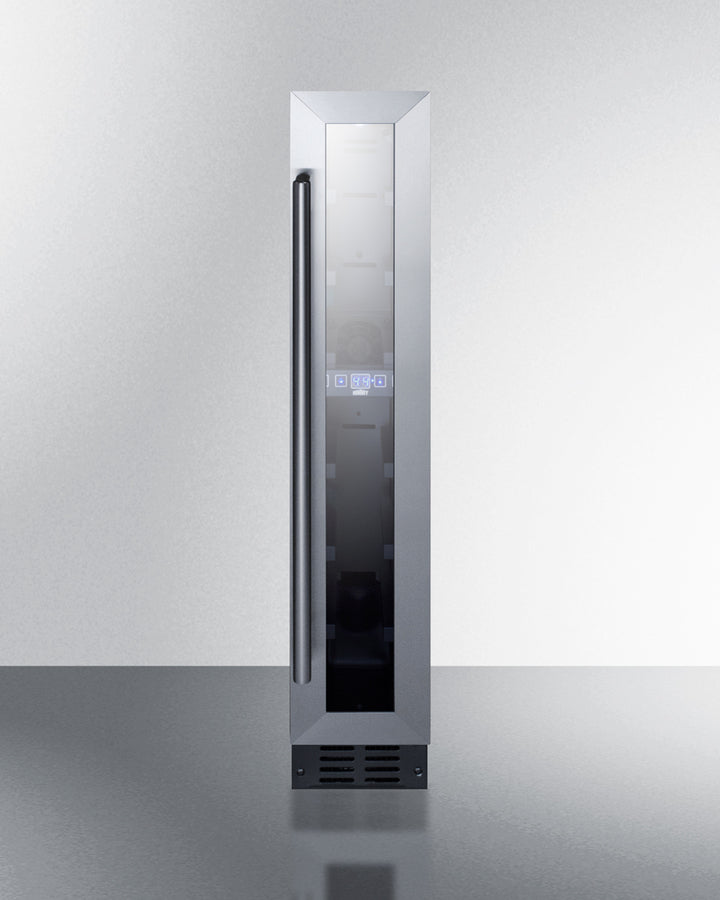

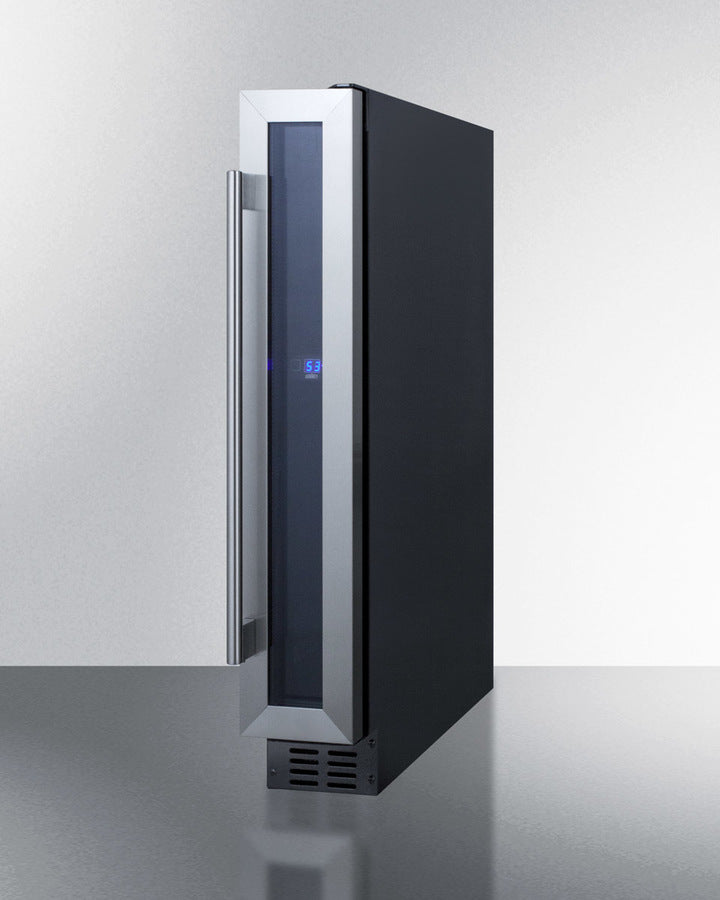

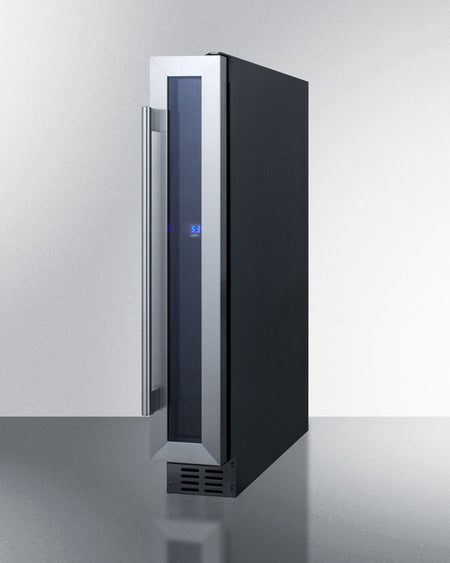

The Summit SWC007 is a slim 6-inch wide built-in wine cellar designed to maximize undercounter space in kitchens, wet bars, and entertainment areas. With storage for up to 7 bottles, this ADA-compliant unit features automatic defrost operation, digital temperature controls, fan-forced cooling, LED lighting, a reversible glass door, and temperature alarms to help maintain optimal wine storage conditions.
Features
- Stores up to 7 wine bottles
- ADA-compliant 32.25" cabinet height
- Built-in installation for undercounter applications
- Automatic defrost operation
- Digital thermostat with 41°F–72°F temperature range
- Fan-forced cooling with interior and exterior fans
- Open door and high-temperature alarms
- Reversible glass door with stainless steel trim

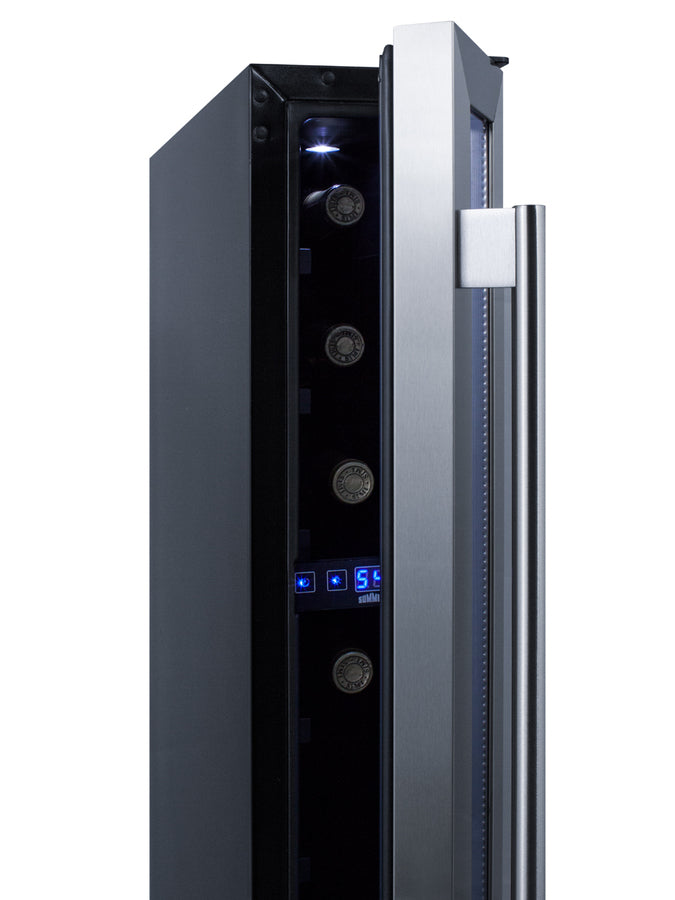

- LED interior lighting
- Sabbath Mode setting available
Specifications
Overview
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.25" (82 cm) |
| Nominal Width | 6.0" (15 cm) |
| Width | 5.88" (15 cm) |
| Nominal Depth | 21.0" (53 cm) |
| Depth | 20.75" (53 cm) |
| Depth with Handle | 22.38" (57 cm) |
| Depth with door at 90° | 25.5" (65 cm) |
| Bottles | 7 bottles |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 40.0 lbs. (18 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101056319 |
Refrigerator-Freezer
| Number of Zones | 1 |
| Door Swing | RHD |
| Reversible | Yes |
| Height Adjustable | Yes |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.57 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Interior Height 1 | 25.75" (65 cm) |
| Interior Width 1 | 3.5" (9 cm) |
| Interior Depth 1 | 14.25" (36 cm) |
| Compressor Step Width | 3.5" (9 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
| Level Legs | 4 |
| Temperature Range | 41 to 72ºF |
| Sabbath Mode | Yes |
| Sound Level | 33.8 dB |
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
