Summit SWC3668 36" Wide 68-Bottle Dual Zone Wine Cellar – Built-In/Freestanding, French Doors
🔒 Secure Checkout
Need Help Choosing the Right Equipment?
Our specialists can help with product selection, freight coordination, installation questions, and bulk quotes.
Summit Appliance Product Template
Description & Features

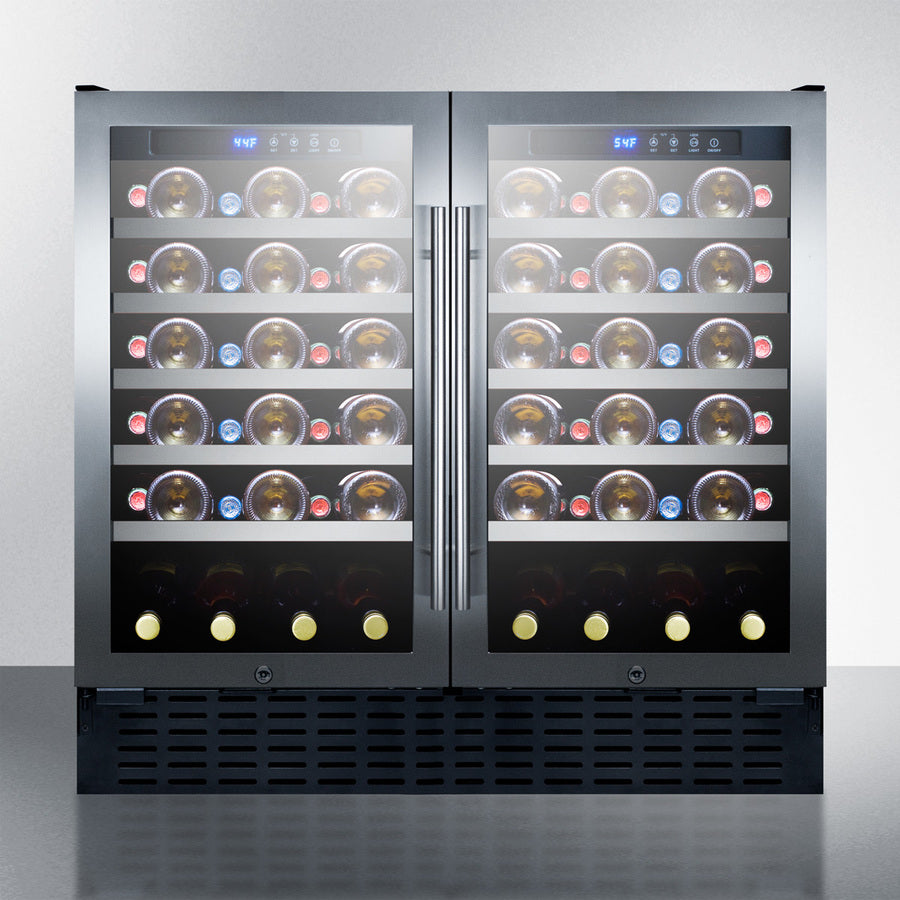

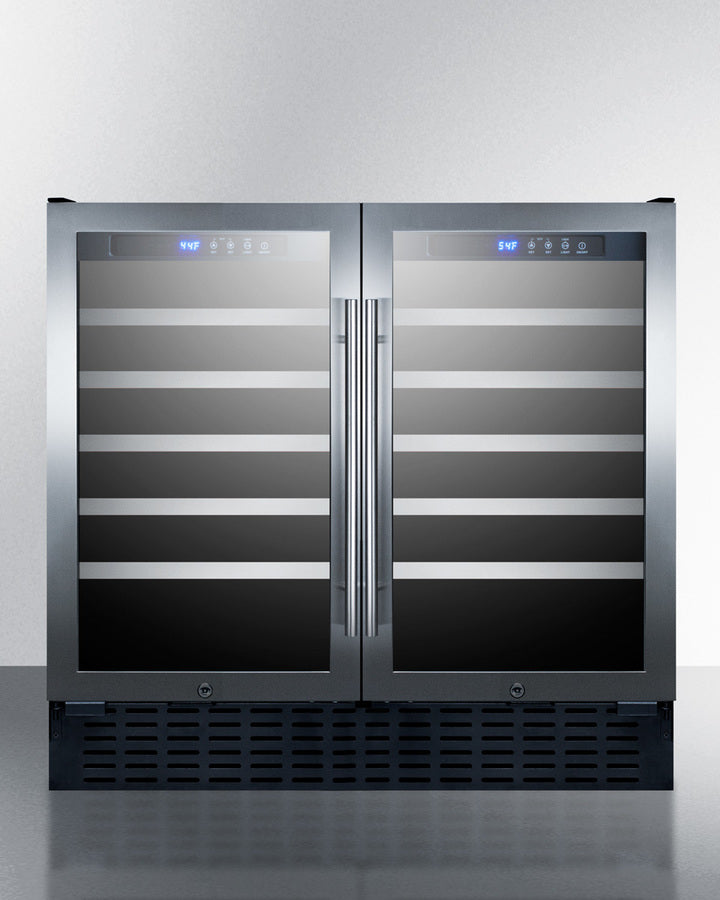

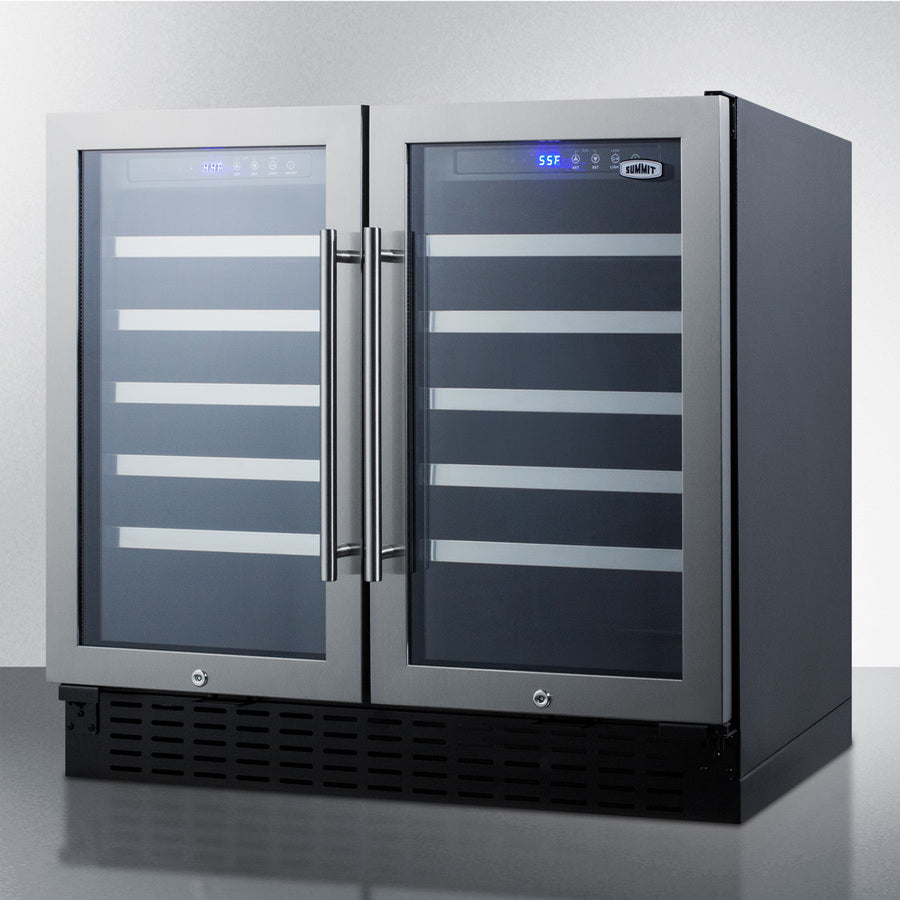

The Summit SWC3668 is a 36-inch dual-zone wine cellar designed for residential and commercial wine storage applications. With a capacity of up to 68 Bordeaux-style bottles, this built-in capable unit features independent temperature zones, automatic defrost operation, digital thermostats, French glass doors with seamless stainless steel trim, wooden shelving, factory-installed locks, and fan-forced cooling for consistent temperature management. The fully finished cabinet also allows freestanding installation.
Features
- Dual-zone storage for red and white wines
- Stores up to 68 standard Bordeaux bottles
- French glass door design with seamless stainless steel trim
- Built-in capable with fully finished cabinet for freestanding use
- Automatic defrost system

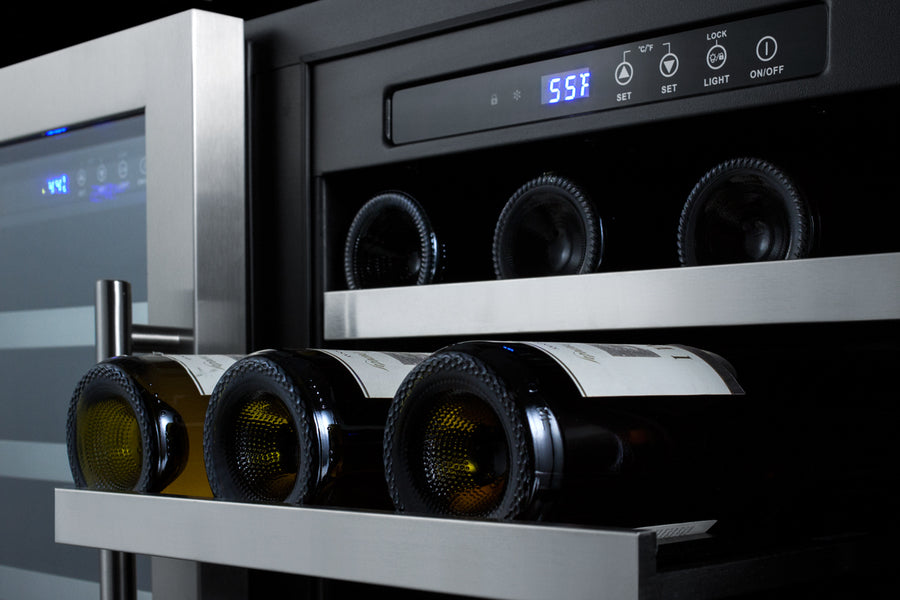

- Digital thermostats for independent zone control
- 10 wooden shelves with stainless steel trim
- Factory-installed locks on both compartments
- Fan-forced cooling for consistent temperatures
- ETL-S listed to ANSI-NSF 7 commercial standards
- Recessed LED interior lighting
Specifications
Overview
| Nominal Height | 35.0" (89 cm) |
| Height of Cabinet | 34.25" (87 cm) |
| Nominal Width | 36.0" (91 cm) |
| Width | 35.38" (90 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 23.5" (60 cm) |
| Depth with Handle | 25.25" (64 cm) |
| Depth with door at 90° | 39.75" (101 cm) |
| Bottles | 68 bottles |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 1.25 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 151.0 lbs. (68 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101054933 |
Refrigerator-Freezer
| Number of Zones | 2 |
| Door Swing | French |
| Adjustable Shelves | Yes |
| Shelf Type | Wood |
| Shelf Qty | 10 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.06 oz. |
| High Side PSI | 150.0 |
| Low Side PSI | 50.0 |
| Interior Height 1 | 23.0" (58 cm) |
| Interior Width 1 | 14.0" (36 cm) |
| Interior Depth 1 | 18.0" (46 cm) |
| Compressor Step Height | 5.0" (13 cm) |
| Compressor Step Width | 14.0" (36 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
| Level Legs | 4 |
| Temperature Range | 40 to 72ºF |
| Interior Height 2 | 23.0" (58 cm) |
| Interior Width 2 | 14.0" (36 cm) |
| Interior Depth 2 | 18.0" (46 cm) |
| Sound Level | 36.0 dB |
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
