Summit SWC530BLBISTADA 23.63" Wide 46 Bottle Dual Zone Wine Cellar – ADA Compliant, Built-In/Freestanding
🔒 Secure Checkout
Need Help Choosing the Right Equipment?
Our specialists can help with product selection, freight coordination, installation questions, and bulk quotes.
Summit Appliance Product Template
Description & Features

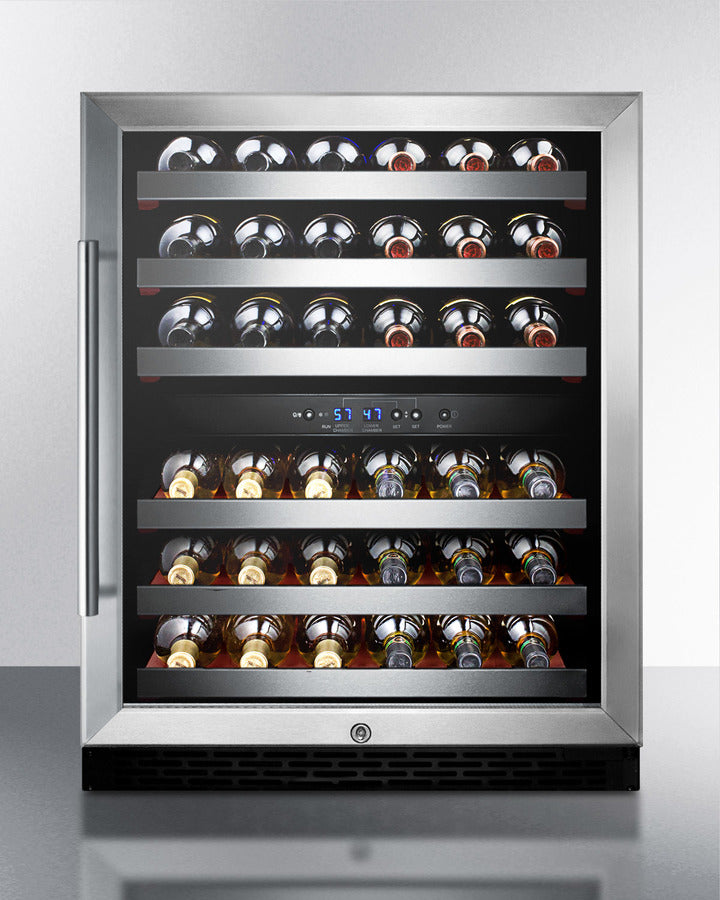

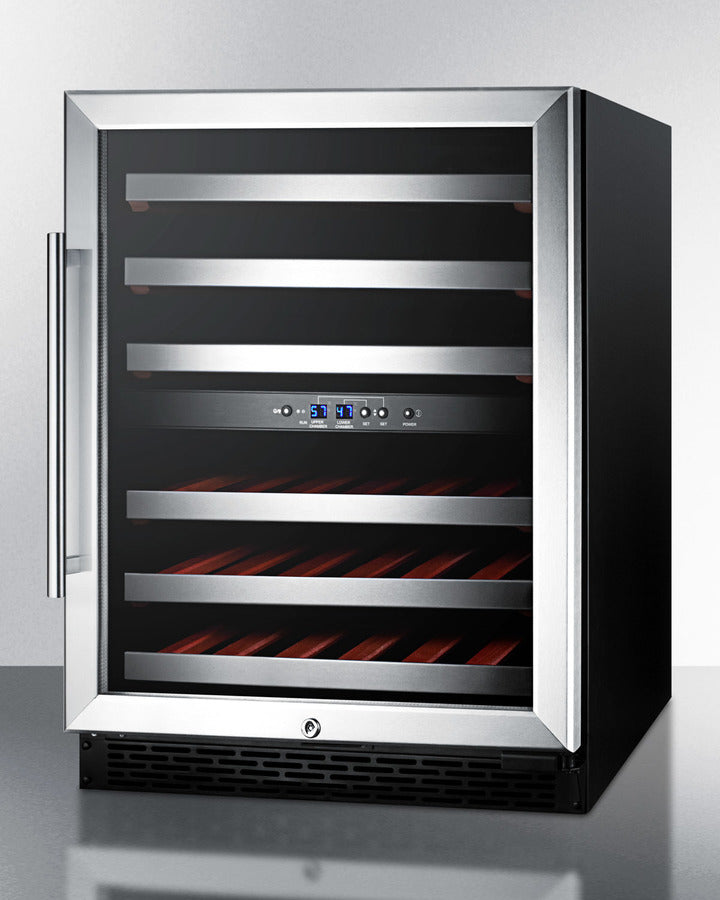

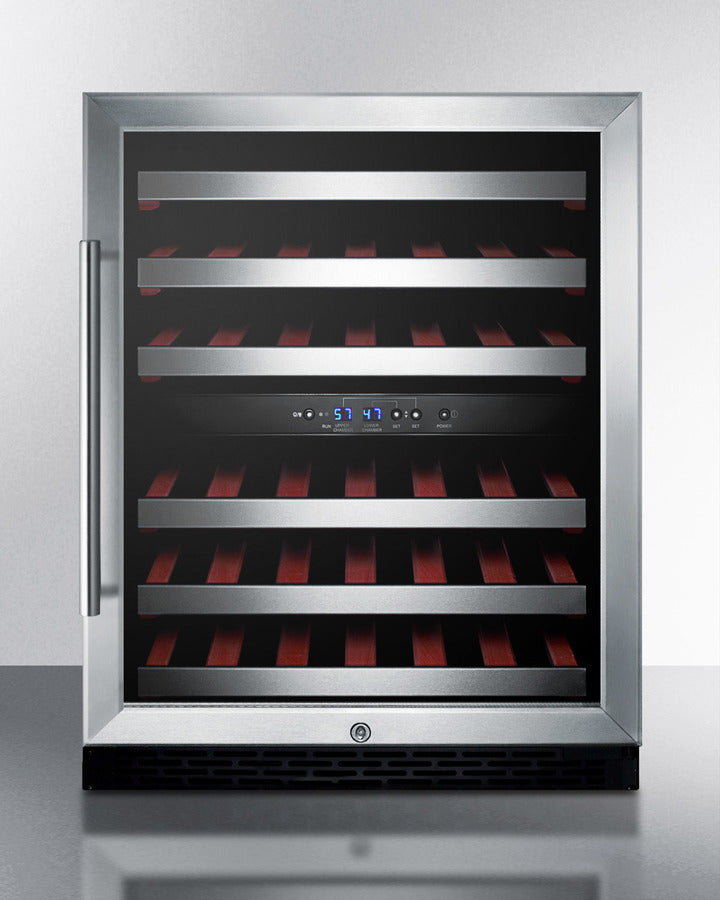

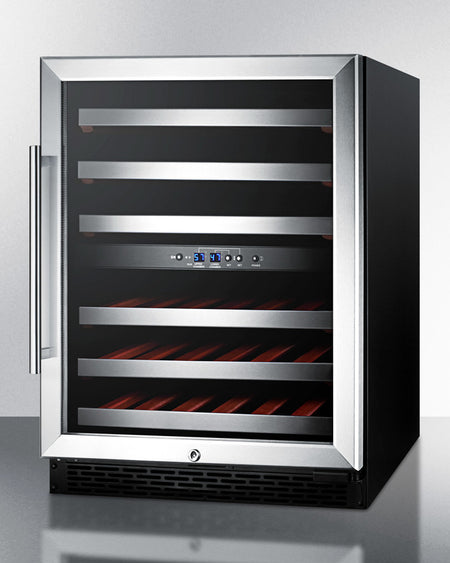

The Summit SWC530BLBISTADA is a 46-bottle dual-zone wine cellar designed for ADA-compliant residential wine storage applications. Measuring just 32 inches high, it fits under lower ADA counters while offering built-in or freestanding installation flexibility. Features include dual digital thermostats, automatic defrost operation, slide-out wooden shelving, a reversible glass door, and a factory-installed lock for secure wine storage at optimal serving temperatures.
Features
- ADA compliant 32" height for lower counters

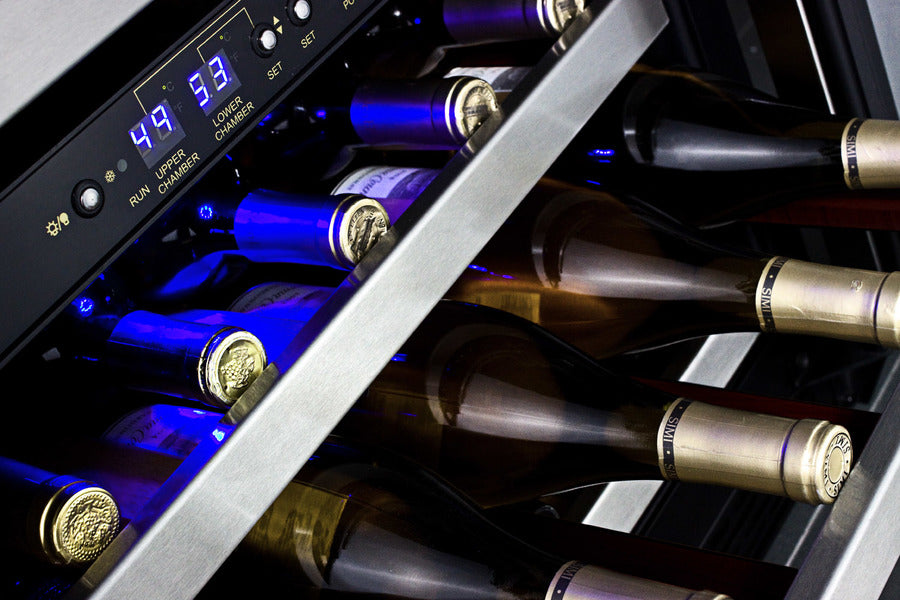

- Dual temperature zones for red and white wines

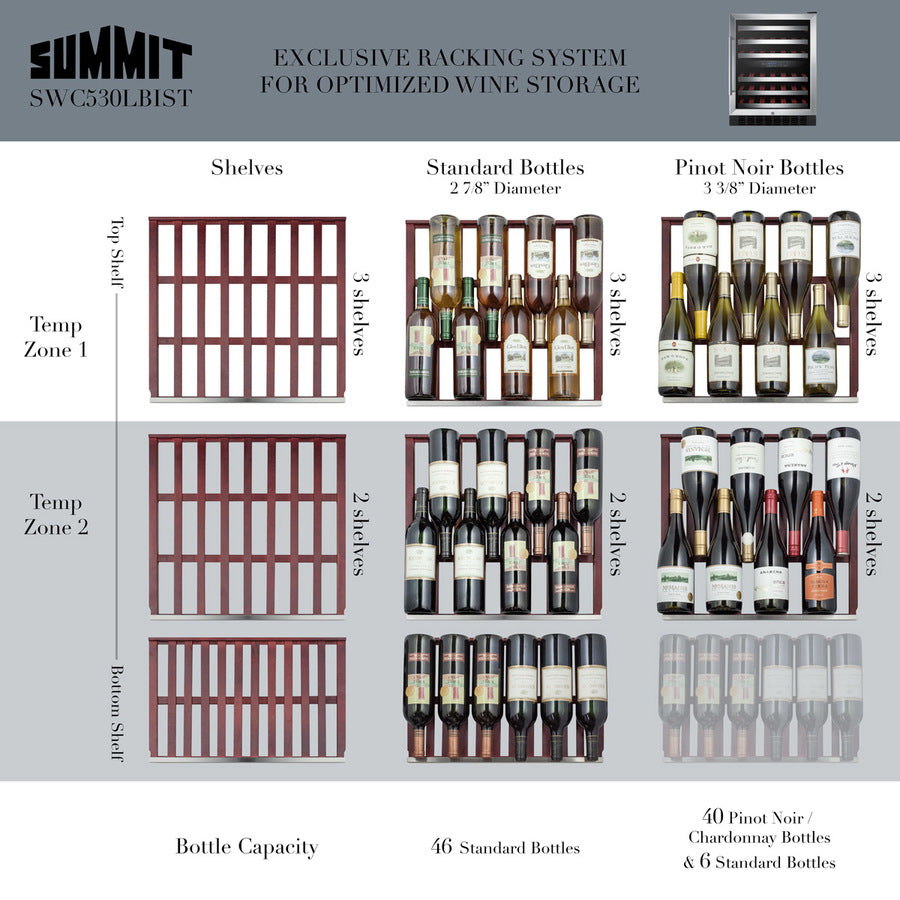

- Stores up to 46 Bordeaux bottles
- Automatic defrost system for reduced maintenance
- Factory-installed keyed lock for security
- Reversible glass door with slide-out wooden shelves
Specifications
Overview
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.63" (60 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 23.38" (59 cm) |
| Depth with Handle | 25.0" (64 cm) |
| Depth with door at 90° | 45.5" (116 cm) |
| Bottles | 46 bottles |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 2.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 112.0 lbs. (51 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101056401 |
Refrigerator-Freezer
| Number of Zones | 2 |
| Door Swing | RHD |
| Reversible | Yes |
| Shelf Type | Wood |
| Shelf Qty | 6 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.23 oz. |
| High Side PSI | 150.0 |
| Low Side PSI | 50.0 |
| Level Legs | 2 |
| Sound Level | 34.3 dB |
