Summit SWC007PNR 6″ Wide Built-In Wine Cellar – Panel-Ready, ADA-Height
🔒 Secure Checkout
Need Help Choosing the Right Equipment?
Our specialists can help with product selection, freight coordination, installation questions, and bulk quotes.
Summit lets you transform even the slimmest undercounter space into a fully functional wine cellar with our 6 inch wide SWC007PNR.

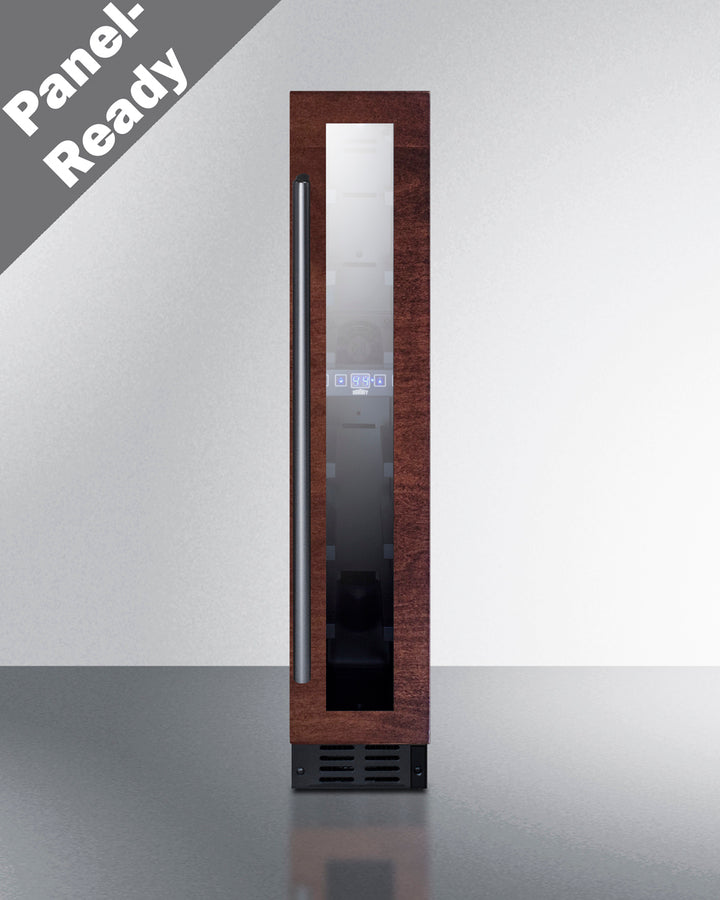

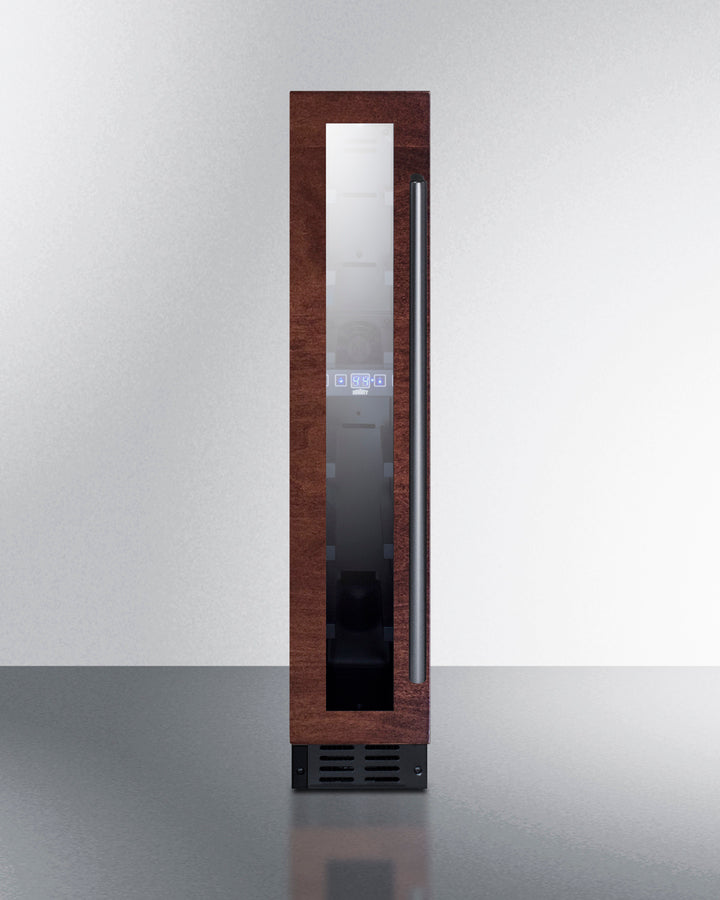

Designed for built-in installation, the SWC007PNR features a front-breathing compressor-based cooling system to ensure proper wine temperature is maintained. The double pane tempered glass door comes with specialized hinging that lets you install your own custom panel over the frame, allowing you to match or complement surrounding cabinetry (panel dimensions: 28 1/8" H x 5 5/8" W at 3/4" thickness). At just 32 1/4 inches high, this unit can easily fit under most ADA compliant counters. We include a kickplate extender and leveling legs that allow you to raise the height an additional 2 1/2 inches, ensuring an easy fit under standard countertops as well. This unit has a right angle plug and sealed rear for added space savings. For a left hand door swing, see model SWC007PNRLHD.

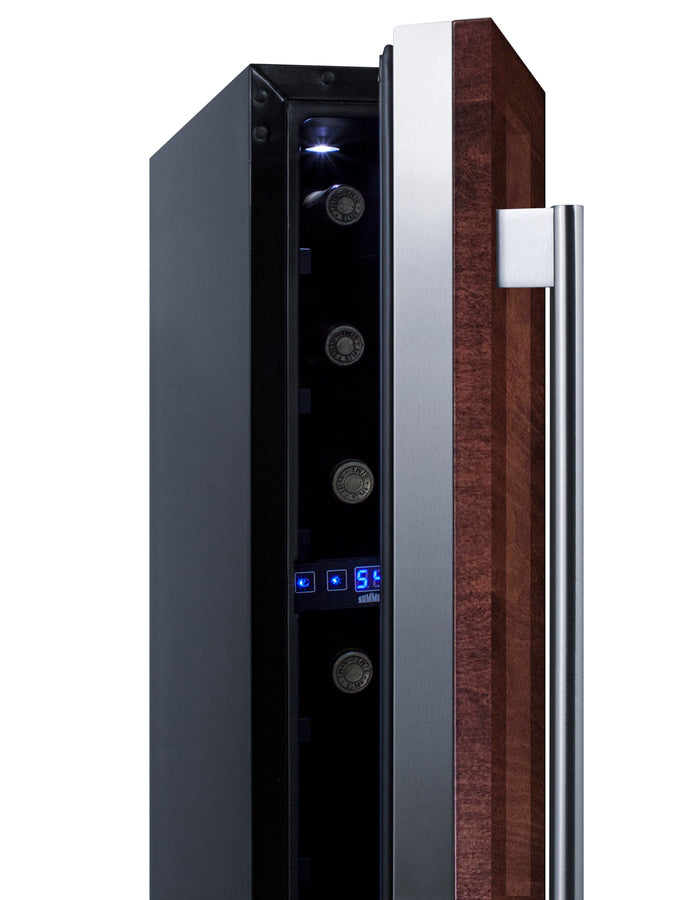

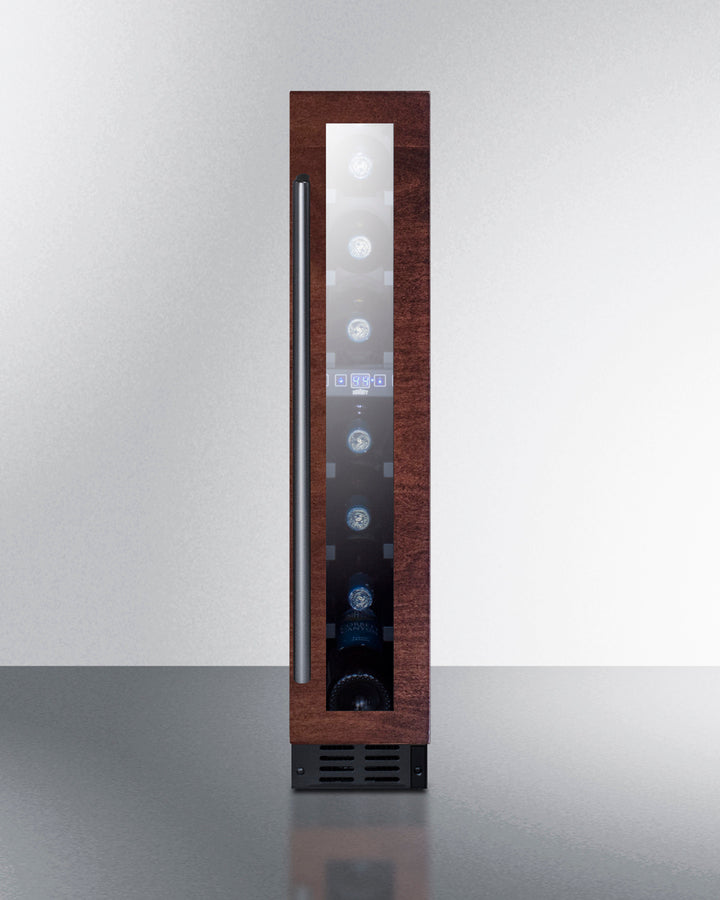

Inside, the SWC007PNR features a digital thermostat with easy touch controls and a temperature readout that can be viewed in Celsius or Fahrenheit at the touch of a button. The temperature can be set between 41 and 72ºF to suit red or white wine. Seven slots let you store wine bottles with ease. The floor is set at a slight angle, ideal for holding an open bottle. This unit is equipped with an open door and high temperature alarm for added assurance. The Sabbath mode setting allows you to disable certain electrical features during periods of observance. The commercial grade compressor operates quietly, keeping the sound levels under 34 dB.
With its innovative size and customizable design, the SWC007PNR can be installed in virtually any space to bring reliable wine storage to kitchens, home bars, offices, walk-in closets, and more.
|
Overview |
Refrigerator-Freezer |
|
|
| Nominal Height | 32.0" (81 cm) | Number of Zones | 1 |
| Height of Cabinet | 32.25" (82 cm) | Door Swing | RHD/LHD |
| Nominal Width | 6.0" (15 cm) | Reversible | Factory Reversible |
| Width | 5.88" (15 cm) | Height Adjustable | Yes |
| Nominal Depth | 21.0" (53 cm) | Thermostat Type | Digital |
| Depth | 20.75" (53 cm) | Interior Light | Yes |
| Depth with Handle | 22.38" (57 cm) | Fan Type | Interior and Exterior |
| Depth with door at 90° | 25.5" (65 cm) | Refrigerant Type | R600a |
| Bottles | 7 bottles | Refrigerant Amount | 0.57 oz. |
| Defrost Type | Automatic | High Side PSI | 270.0 |
| Door | Glass/Panel-Ready Frame | Low Side PSI | 105.0 |
| Cabinet | Black | Interior Height 1 | 25.75" (65 cm) |
| US Electrical Safety | ETL | Interior Width 1 | 3.5" (9 cm) |
| Canadian Electrical Safety | ETL-C | Interior Depth 1 | 14.25" (36 cm) |
| Amps | 1.0 | Compressor Step Width | 3.5" (9 cm) |
| Voltage/Frequency | 115 V AC/60 Hz | Compressor Step Depth | 5.0" (13 cm) |
| Weight | 40.0 lbs. (18 kg) | Level Legs | 4 |
| Parts & Labor Warranty | 1 Year | Temperature Range | 41 to 72ºF |
| Compressor Warranty | 5 Years | Sabbath Mode | Yes |
| UPC | 761101146751 | Sound Level | 33.8 dB |
